Products Paver

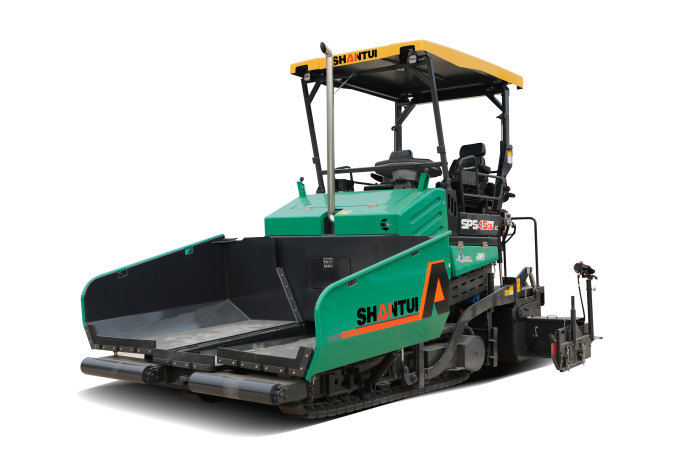

SPS45-C6 AC
Paver
SPS45-C6 AC
  • Maximum paving width(m)
    4.5
  • Maximum paving thickness(mm)
    280
  • Engine power(kW)
    95.6
inquiry
Find nearby distributor
  • Characteristic
  • Parameter
  • Case
  • Inquiry
inquiry
Find nearby distributor
Characteristic

Powered by a 95.6 kW engine, it delivers a maximum paving thickness of 280 mm and maximum productivity of 360 t/h, leading efficiency in its class.

The dual-support multi-stage sliding-column telescopic screed frame features high rigidity and deformation resistance, supporting hydraulic automatic tensioning and conveyor reverse operation.

It is fitted with electric centralized lubrication and electric diesel spray systems for convenient, worry-free operation.

Parameter
Parameter SPS45-C6 AC
Maximum paving width(m) 4.5
Maximum paving thickness(mm) 280
Engine power(kW) 95.6
External dimensions 6000×4675×3745
Engine model SC4H130G3
Overall weight(T) 13
Minimum paving width(m) 1.8
Paving speed(m/min) 0-20
Travel speed(km/h) 0-2.2
Theoretical productivity(T/h) 360
Hopper capacity(T) 12
Emissions(Indicated as per international standards) Eu stage IIIA
Application Cases
Shantui paver working for bridge building
Shantui paver working for bridge building
Shantui paver for construction of a road in Anhui
Shantui paver for construction of a road in Anhui
Paver for runway construction in Zhengzhou International Airport Project
Paver for runway construction in Zhengzhou International Airport Project
