Products Paver

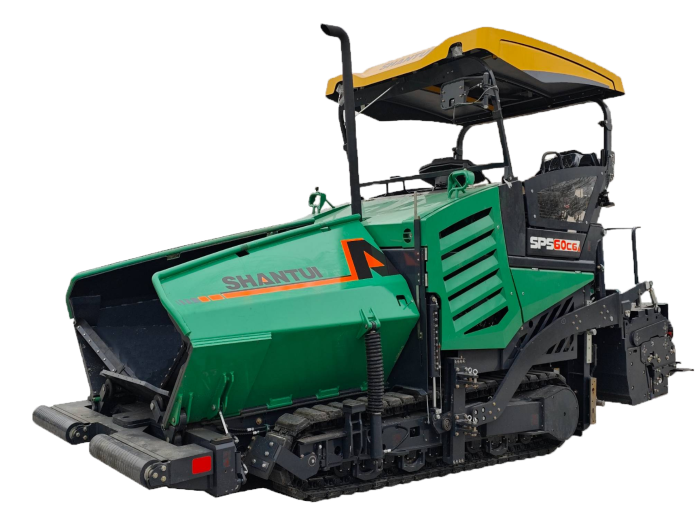

SPS60-C6
Paver
SPS60-C6
  • Maximum paving width(m)
    6
  • Maximum paving thickness(mm)
    320
  • Engine power(kW)
    140/162
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic

Powered by a 140/162 kW high-output engine, it delivers a maximum paving thickness of 320 mm and maximum productivity of 750 t/h, leading efficiency in its class.


The upgraded dual-layer four-sliding-column telescopic screed provides superior rigidity. It integrates multiple one-touch intelligent operation functions and comes fully equipped with remote control,

camera monitoring, digital leveling, and hydraulic crown adjustment for smart, efficient, and effortless operation.

Parameter
Parameter SPS60-C6
Maximum paving width(m) 6
Maximum paving thickness(mm) 320
Engine power(kW) 140/162
External dimensions 7260×6300×3950
Engine model WP6G220E330
Overall weight(T) 23
Minimum paving width(m) 2.55
Paving speed(m/min) 0-20
Travel speed(km/h) 0-3
Theoretical productivity(T/h) 750
Hopper capacity(T) 14
Emissions(Indicated as per international standards) Eu stage IIIA
