  Products  Compactor

Tandem

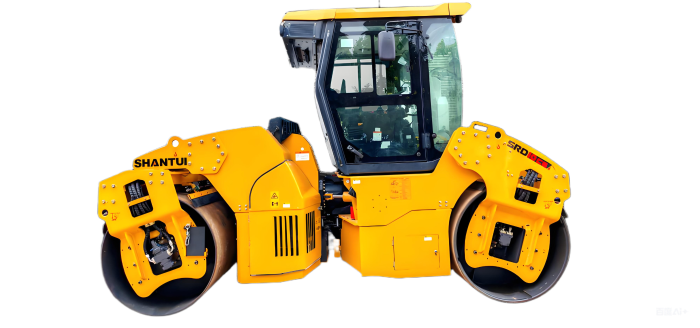

SRD10-C6

External dimensions(mm)

4875mm * 1940mm * 3100mm (with cab) / 4875mm * 1940mm * 2500mm (without cab)
Engine brand

Weichai
Power/speed(kW/rpm)

92kW/2200rpm

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

The special engine matches well with the hydraulic system for high efficiency, and the hydraulic dual drive ensures uniform compaction; with dual amplitude & dual vibration, the electronically-controlled vibration start can be switched freely; with the hydraulic steering and articulated frame, it is light and flexible in steering;

Ease of maintenance and operation comfort

The anti-corrosion water tank with large capacity is connected to supply water for intermittent sprinkling; the rear hood on both sides can be opened at a large angle for easy maintenance; the console and seat can be rotated to left and right by 90° for easy observation of edge compaction;

Adaptability to diverse working conditions

It is suitable for the compaction and repair of asphalt surface courses of pavements, such as graded roads, airports, urban roads, intercity roads, county/township roads, stadiums and other industrial sites.

Parameter

View online

Parameter	SRD10-C6
External dimensions(mm)	4875mm * 1940mm * 3100mm (with cab) / 4875mm * 1940mm * 2500mm (without cab)
Engine brand	Weichai
Power/speed(kW/rpm)	92kW/2200rpm
Operating weight(kg)	10300
Front and Rear Static Linear Loads(N/cm)	Front: 5100kg; Rear: 5200kg
Vibration frequency low/high(Hz)	40/55
Minimum turning radius(mm)	4220
Excitation force(kN)	115/75
Amplitude(mm)	0.8/0.35
Gradeability	35%
Speed(km/h)	Forward/Reverse: 0-6, 0-15
Emissions (Indicated as per China standards)	Tier 3
