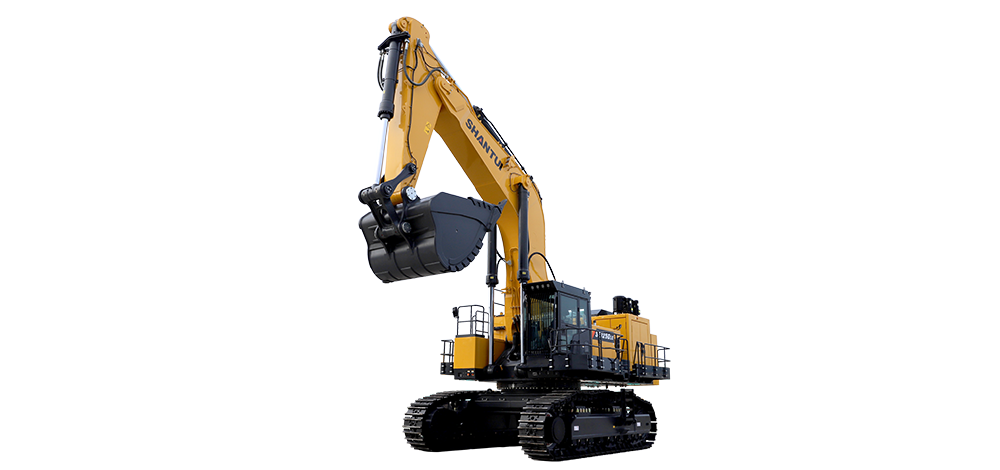

SE1250LCW
Mining Excavator
SE1250LCW
  • Operating weight(kg)
    120000
  • Engine power(kW/rpm)
    680/1800
  • Bucket capacity(m³)
    7.5-10(8.5)
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point

Equipped with the Weichai 8M33 high-power engine, the machine delivers robust power, exceptional efficiency and energy savings. Additionally, it is equipped with a large-displacement main pump and a fully electronic control hydraulic system to achieve precise matching for optimal performance.

Ease of maintenance and operation comfort

The machine is equipped with a 10.1-inch intelligent touchscreen, offering multiple working mode selections, as well as features such as an electric heating air-suspension seat and a high-power air conditioning system. The machine provides a spacious maintenance area, allowing for easy access during inspections and maintenance.

Adaptability to diverse working conditions

It can be configured with a range of working devices such as rock buckets, ultra-powerful booms, rippers, and a variety of buckets to meet different working condition requirements.

Parameter
Parameter SE1250LCW
Operating weight(kg) 120000
Engine power(kW/rpm) 680/1800
Bucket capacity(m³) 7.5-10(8.5)
External dimensions(mm) 14845*5385*4475
Bucket rod digging force(kN) 532
Bucket digging force(kN) 610
Rotating speed(r/min) 0-5.5
Travel speed(km/h) 2.4/3.5
Maximum digging height(mm) 12480
Maximum digging distance(mm) 13875
Maximum digging depth(mm) 8165
Emissions (Indicated as per international standards) Tier 4
