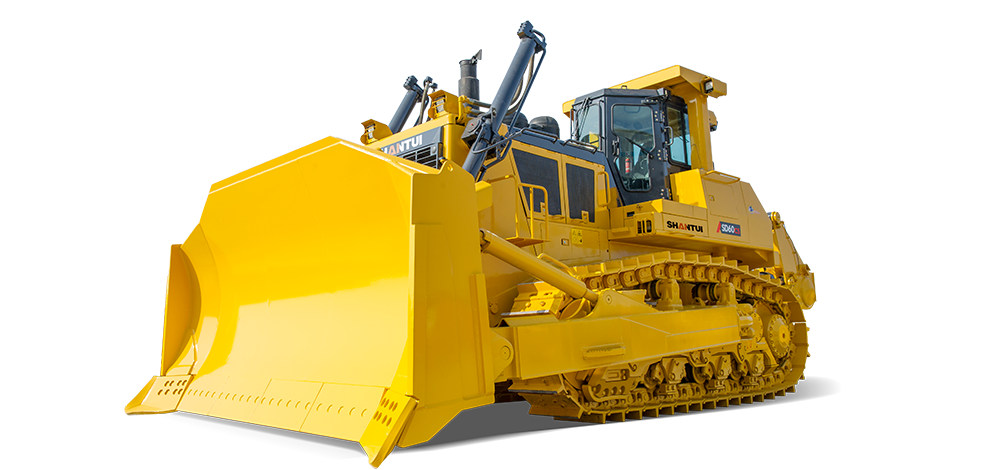

SD60-C5R EC
Large Bulldozer
SD60-C5R EC
  • Overall weight(kg)
    70630
  • Engine brand
    QSK19
  • Rated power/rated speed(kW/rpm)
    450/1800
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Introduction to the Bulldozer

1. Development Basis: Developed based on the SD60 - C5 bulldozer.

2. Target Environments: Designed for high - risk and harsh working conditions threatening human health, like mine waste dumping, extreme cold/heat, and hazardous or smelly areas.

3. Functional Highlights: Offers 5G - enabled ultra - long - distance, high - definition simulated remote control with active safety features. Ensures safe, efficient, and user - friendly remote operation.

Introduction to the Remote Control System

1. Technical Features: Utilizes 5G's high bandwidth and low latency for ultra - long - distance remote control within the 5G coverage.

2. Control Experience: Enables full - vehicle remote control, with an integrated control seat and ergonomic electric handle for easy driving.

3.Monitoring Views: Provides multi - angle real - time monitoring, covering blade corners, working direction, and overall views.

4. Safety and Efficiency: Allows remote operation parameter monitoring. Comes with standard safety locking, emergency stop, and anti - rollover functions. Optional rear - collision prevention and dumping edge warning enhance construction quality and efficiency.

Parameter
Parameter SD60-C5R EC
Overall weight(kg) 70630
Engine brand QSK19
Rated power/rated speed(kW/rpm) 450/1800
Machine external dimensions(mm) 10390×4690×4370
Track center distance(mm) 2500
Track shoe width(mm) 610/710
Ground contact length(mm) 3840
Fuel tank capacity(L) 1150
Blade type Semi-U
Blade capacity(m³) 18.9
Emissions (Indicated as per international standards) China Ⅲ
