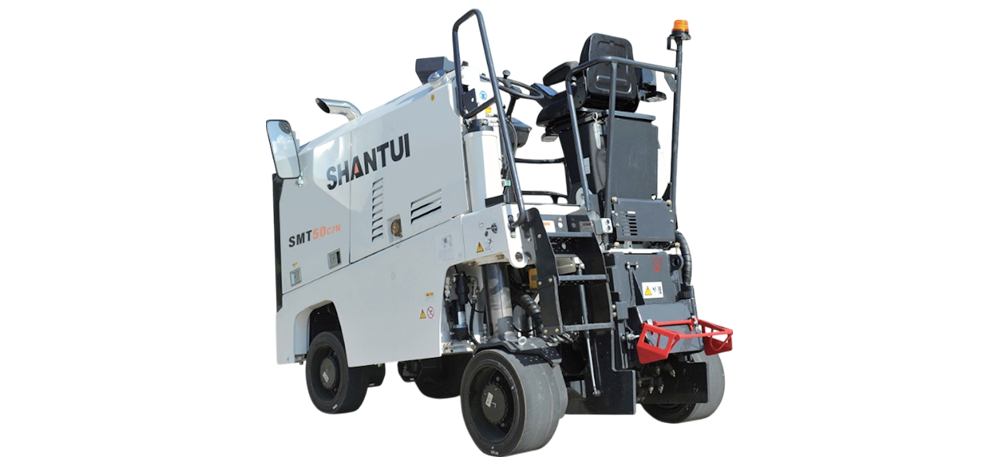

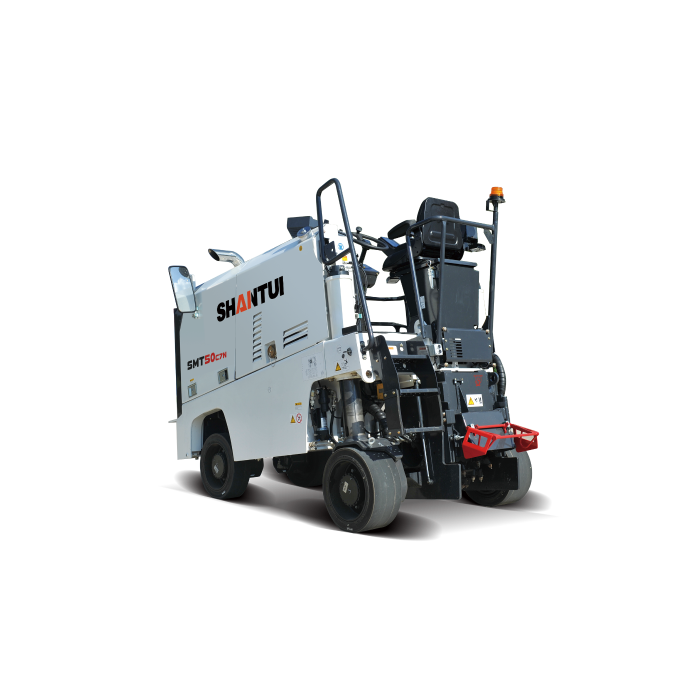

SMT50-C7N
Cold Milling Machine
SMT50-C7N
  • Engine power(kW/rpm)
    107/2200
  • Operating weight(kg)
    6600
  • Maximum milling width(mm)
    500
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
High - efficiency Construction

With a 107kW engine and a working weight of 6.6 tons, the machine demonstrates strong operational capabilities. Its well - designed milling drum ensures high milling efficiency and minimal vibration. Boasting a minimum milling radius of 325mm, it offers remarkable steering flexibility. The standard - equipped pneumatic tool - changing device and slow - rotation function enable easy and efficient operations.

Comfortable Operation

The 7 - inch color large screen presents abundant information, facilitating more convenient operation. The multi - function integrated handle further streamlines the operation process. The slow - rotation function of the milling drum reduces physical effort. Additionally, the upgraded shock - absorbing seat enhances the overall operating comfort.

Easy Maintenance

The power and hydraulic systems feature a brand - new and more rational layout. The side doors of the cover can be opened at a 90 - degree angle, and the fuel tank can be swung out for access, significantly increasing the maintenance space.

Parameter
Parameter SMT50-C7N
Engine power(kW/rpm) 107/2200
Operating weight(kg) 6600
Maximum milling width(mm) 500
External dimensions 3370×1695×2300
Engine model Weichai WP4.6N
Maximum milling depth(mm) 180
Number of milling tools 54
Milling diameter including tools(mm) 670
Conveyor belt width(mm) /
Operating speed(m/min) 0-30
Travel speed(km/h) 0-8
Emissions (Indicated as per China standards) Euro IIIA
