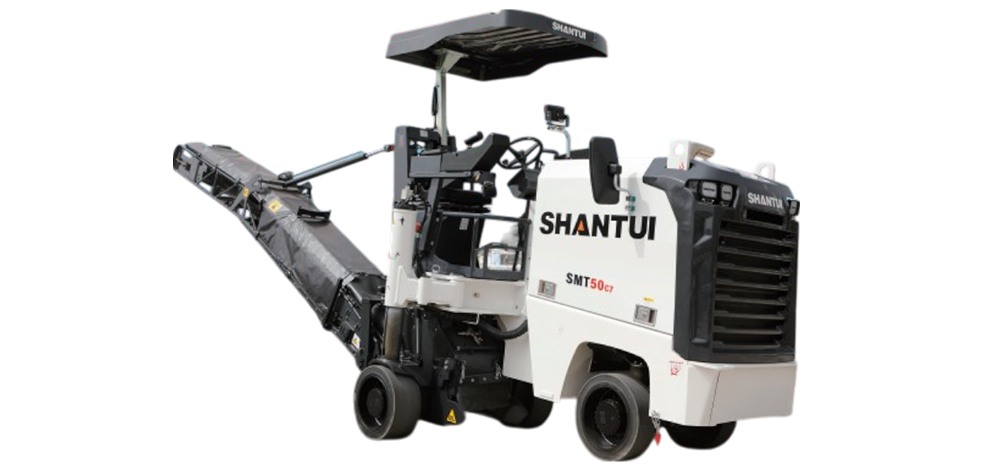

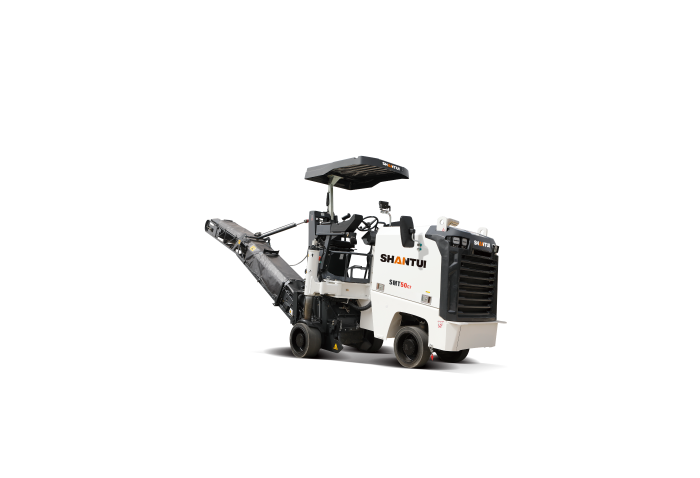

SMT50-C7
Cold Milling Machine
SMT50-C7
  • Engine power(kW/rpm)
    107/2200
  • Operating weight(kg)
    7680
  • Maximum milling width(mm)
    500
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
High - efficiency Construction

Equipped with a 107kW engine and a working weight of 7.68 tons, it boasts strong operation capabilities. The outstanding design of the milling drum ensures high milling efficiency and low vibration. With a minimum milling radius of 325mm, it offers flexible steering. The standard - equipped pneumatic tool - changing device and slow - rotation function make operations easy and efficient.

Comfortable Operation

The 7 - inch color large screen provides abundant information and makes operation more convenient. The multi - function integrated handle further simplifies operation. The slow - rotation function of the milling drum reduces labor intensity. The upgraded shock - absorbing seat enhances operating comfort.

Easy Maintenance

The power and hydraulic systems have a brand - new and more rational layout. The side doors of the cover can be opened at 90 degrees, and the fuel tank can be rotated outward for access, greatly increasing the maintenance space.

Parameter
Parameter SMT50-C7
Engine power(kW/rpm) 107/2200
Operating weight(kg) 7680
Maximum milling width(mm) 500
External dimensions 8150×1695×3300
Engine model Weichai WP4.6N
Maximum milling depth(mm) 180
Number of milling tools 54
Milling diameter including tools(mm) 670
Conveyor belt width(mm) 400
Operating speed(m/min) 0-30
Travel speed(km/h) 0-8
Emissions (Indicated as per China standards) Euro IIIA
