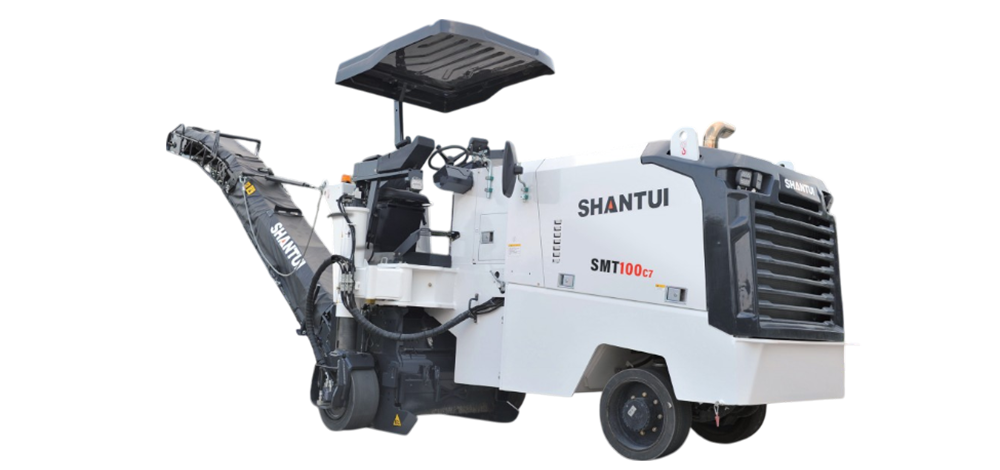

SMT100-C7
Cold Milling Machine
SMT100-C7
  • Engine power(kW/rpm)
    164/2200
  • Operating weight(kg)
    14200
  • Maximum milling width(mm)
    1000
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
High - efficiency Construction

It is powered by the industry - mainstream Cummins B6.7 engine, which is economical and reliable. With a 350L fuel tank and a 700L water tank, it has a strong endurance capacity.

Comfortable Operation

It features intelligent cylinder leveling, a multi - function integrated control handle, and a 7 - inch large - screen display, making operation more convenient. The material - conveying image system enhances the comfort of construction operations. The slow - rotation function of the milling drum makes tool replacement less labor - intensive.

Easy Maintenance

The maintenance parts of the power and hydraulic systems are newly and rationally laid out. The four doors of the cover can be opened at 90 degrees, providing a larger maintenance space.

Parameter
Parameter SMT100-C7
Engine power(kW/rpm) 164/2200
Operating weight(kg) 14200
Maximum milling width(mm) 1000
External dimensions 12190×2160×3575
Engine model QSB6.7
Maximum milling depth(mm) 210
Number of milling tools 80
Milling diameter including tools(mm) 860
Conveyor belt width(mm) 400
Operating speed(m/min) 0~40
Travel speed(km/h) 0~8
Emissions (Indicated as per China standards) Euro IIIA
