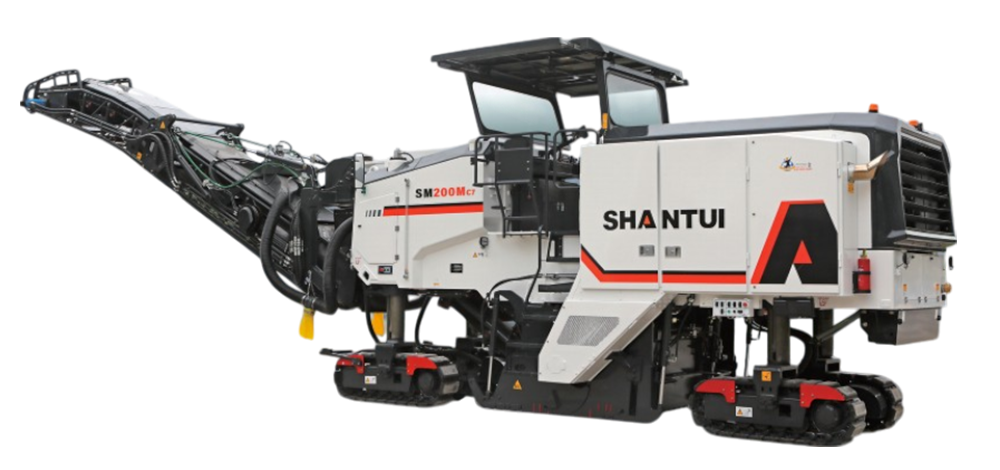

SMT200M-C7
Cold Milling Machine
SMT200M-C7
  • Engine power(kW/rpm)
    563/2100
  • Operating weight(kg)
    30500
  • Maximum milling width(mm)
    2000
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
High - efficiency Construction

It is equipped with a 563kW electronically - controlled injection engine, which has a large power reserve and good adaptability to various working conditions. With a maximum operating weight of 32 tons, it can operate stably under heavy - load conditions without skipping. The conveyor belt features a large swing angle design, allowing for a wide material - receiving range.

Fuel Economy

Adopting the rear - mounted dual - fan temperature - controlled cooling technology, the machine offers better fuel efficiency. The water system has a clogging alarm function, effectively extending the service life of the milling cutters. The small - volume hydraulic oil tank design results in low maintenance costs.

Easy Operation and Comfort

The independently developed quick - change cutter holder system improves the disassembly efficiency of cutter heads and holders by 50%. It comes standard with functions like a rear - view camera for safer construction. The power and transmission systems adopt a shock - absorbing design, reducing vibration during operation. The blow - type design of the cooling system keeps the air ducts away from the operator's console, ensuring a comfortable operating environment. "

Parameter
Parameter SMT200M-C7
Engine power(kW/rpm) 563/2100
Operating weight(kg) 30500
Maximum milling width(mm) 2000
External dimensions 15350×2800×3930
Engine model Cummins QSM15 77C(Tier 3)
Maximum milling depth(mm) 330
Number of milling tools 148
Milling diameter including tools(mm) 1020
Conveyor belt width(mm) 850
Operating speed(m/min) 0-100
Travel speed(km/h) 0-6
Emissions (Indicated as per China standards) Tier 3
