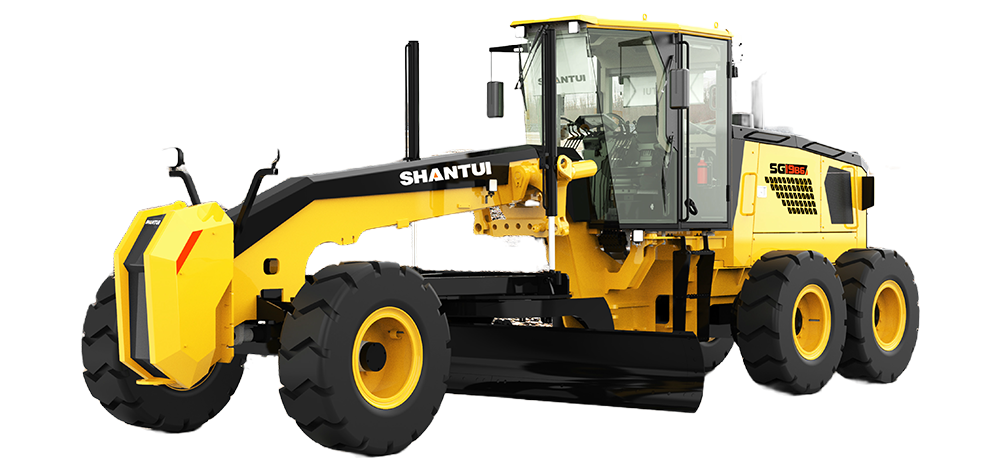

SG19-B6(Weichai)
Motor Grader
SG19-B6(Weichai)
  • Engine power(kW)
    140
  • Overall weight(T)
    16
  • Blade width(mm)
    3660/3965
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Powertrain and Transmission

It is equipped with a Weichai engine and a Shantui gearbox. The power transmission system is optimally matched to ensure stable and reliable power output under different working conditions, and it boasts good fuel economy.

Working Device

It features a heavy - duty slewing bearing working device and an integrally hot - pressed double - rail grader blade, which offer strong wear and impact resistance.

Cab Design

The cab without A - pillars is equipped with a multi - degree - of - freedom instrument panel and a push - button shift handle, providing a more comfortable ride.

Maintenance Features

With a large - opening hood, lubrication - free technology, and the outward - led design of the gearbox oil filler and the engine oil drain, maintenance is made easy and time - saving.

Parameter
Parameter SG19-B6(Weichai)
Engine power(kW) 140
Overall weight(T) 16
Blade width(mm) 3660/3965
External dimensions(mm) 9700×2600×3358
Engine model WP6G190E22
Fuel tank capacity(L) 360
Hydraulic oil tank capacity(L) 85
Maximum traction(kN) 87.8
Maximum forward speed(km/h) 0-42
Maximum reverse speed(km/h) 0-25.2
Blade cutting angle(°) 22-73º
Emissions(Indicated as per international standards) China Ⅱ
