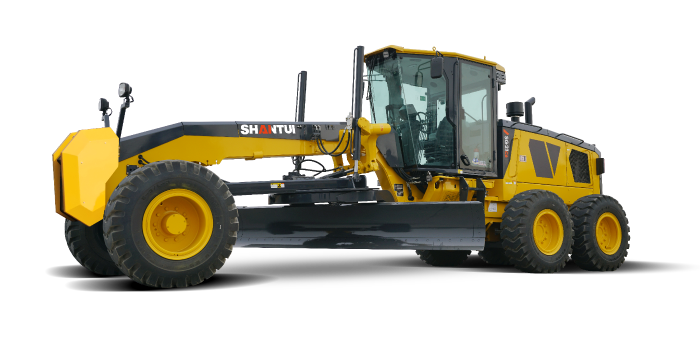

SG21-C6 AWD EC
Motor Grader
SG21-C6 AWD EC
  • Engine power(kW)
    162
  • Overall weight(T)
    17600
  • Blade width(mm)
    4270
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Development Positioning and Foundation

Based on the SG21 - C6AWD motor grader, it is equipped with a Weichai WP7 engine and focuses on adaptability design for extremely cold working conditions, making breakthroughs from multiple perspectives such as the product's cold - start capability, cold resistance, riding comfort, structural strength, and attachment adaptability.

Component and Material Optimization

Key hydraulic components are selected from internationally renowned brands to ensure reliability. Pipes and seals are made of cold - resistant materials to enhance the product's adaptability to extremely cold working conditions. All hydraulic components like pumps, cylinders, and valves have passed tests on a hydraulic test bench.

Cab Improvement

A hexagonal - structured cab is adopted to expand the field of vision. The cab is equipped with an air - heating warm - air system and glass heating to achieve the defrosting function and improve riding comfort.

Starting System Upgrade

The starting system is enhanced with fuel water filter heating, intake air heating, and a fuel heating system to improve the engine's cold - start capability.

Drive and Brake System Design

A constant - pressure variable pump is used to drive the reducer motor for front - wheel drive. Hydraulic priority steering and priority braking are adopted, sharing the working pump system to reduce costs.

Parameter
Parameter SG21-C6 AWD EC
Engine power(kW) 162
Overall weight(T) 17600
Blade width(mm) 4270
External dimensions(mm) 9700×2600×3358
Engine model WP7G220E300
Fuel tank capacity(L) 360
Hydraulic oil tank capacity(L) 85
Maximum traction(kN) 138
Maximum forward speed(km/h) 0-40.9
Maximum reverse speed(km/h) 0-25.4
Blade cutting angle(°) 22-73
Emissions(Indicated as per international standards) China Ⅲ
