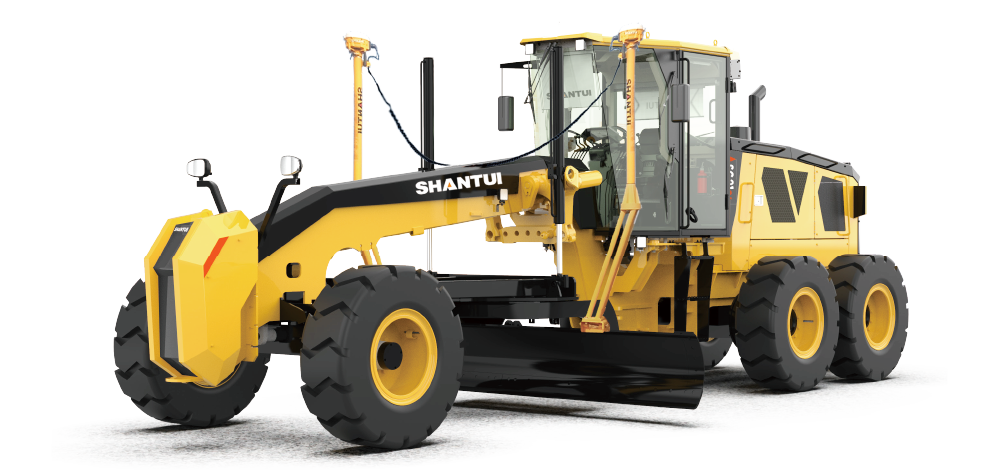

SG21-Ci2 AWD
Motor Grader
SG21-Ci2 AWD
  • Engine power(kW)
    162
  • Overall weight(T)
    17600
  • Blade width(mm)
    4270
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Overall Advantages

The Shantui SG21 - Ci2 AWD Intelligent Motor Grader ensures construction efficiency and quality, reduces reliance on machine operators, truly achieves stakeless construction, cuts down the number of on - site construction workers, enhances machine utilization, and secures the construction schedule. Developed based on Shantui's new platform, it features powerful performance, reliability, the maximum traction force in its horsepower range, and fuel efficiency.

Equipment Features

It has a working system with flexible operation, an electric - controlled travel system that is convenient and labor - saving. The cab offers a wide field of vision and good comfort, can adapt to harsher working environments, and is easy to maintain.

Intelligent Operations

Deep integration of the whole machine, with the auxiliary construction display and control terminal integrated with the machine dashboard. Automatic blade control enables construction according to the designed elevation, can handle complex shapes, significantly reduces the number of construction passes, and achieves a leveling accuracy of ±2 cm. One - key switch between manual and automatic modes reduces operator skills requirements and labor intensity, allowing operators to work independently day and night.

Parameter
Parameter SG21-Ci2 AWD
Engine power(kW) 162
Overall weight(T) 17600
Blade width(mm) 4270
External dimensions(mm) 9700×2600×3358
Engine model WP7G220E300
Fuel tank capacity(L) 360
Hydraulic oil tank capacity(L) 85
Maximum traction(kN) 138
Maximum forward speed(km/h) 0-40
Maximum reverse speed(km/h) 0-25
Blade cutting angle(°) 22-73
Emissions(Indicated as per international standards) China Ⅲ
