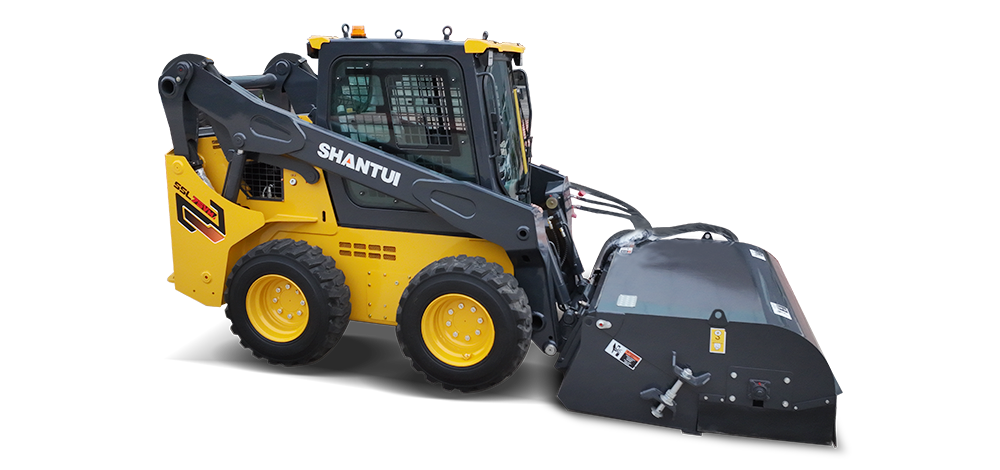

SSL75V-M
Skid Steer Loader
SSL75V-M
  • Operating weight (kg)
    4000
  • Rated power/speed (kW/rpm)
    55.4/2600
  • Rated bucket capacity (m³)
    0.5
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Convenience of Maintenance

● Fully open tail gate and split-type hood are equipped. All daily maintenance parts are accessible from the ground, within easy reach;

● The whole cab is tilted backward, and there is a large inspection space for pumps, motors, valves and other parts, which is convenient for maintenance.


Driving Environment

● The machine features a reversible cab with all-glass side door, which meets the ROPS and FOPS performance requirements;

● It features fully covered interior trim, noise reduction, dust prevention, thermal insulation and wide vision. It's equipped with high-performance seats, heating and cooling air conditioner, reversing camera and LED headlights, etc., making the driving environment warm in winter and cool in summer.


Structural Part

● The machine features a welded integrated frame with high strength and long service life;

● Vertical lifting structure is adopted, with excellent point design and stronger lifting capacity.


Transmission System

● Hydrostatic closed transmission system is adopted to realize stepless speed change, and the output travel torque is large with high transmission efficiency;

● Compact structural layout, low height of center of gravity of the machine, good stability of the machine, and flexible steering in narrow space.


Power System

● SSL75V-M slip loader features the Kubota V3307-TE5A Euro V engine, which is advanced and reliable, strong in power, efficient and fuel-efficient, quiet and comfortable, intelligent and environmentally friendly;

● It features an air suction temperature control independent heat dissipation system, providing better heat dissipation effect;

● The fuel-water separator is arranged independently, which is convenient for maintenance;

● The 90L large-capacity diesel tank is rear-mounted to meet the requirements of continuous operation, and the stability of the machine is greatly improved.


Parameter
Parameter SSL75V-M
Operating weight (kg) 4000
Maximum dumping height (mm) 3270
Dumping distance (mm) 936
Maximum breakout force (kN) ≥25.2
Sum of three items (s) ≤10.3
Engine model Kubota V3307-TE5A
Rated power/speed (kW/rpm) 55.4/2600
Overall dimensions of machine (mm) 3660*1823*2069
Forward speed (km/h) 0-19
Backward speed (km/h) 0-11.9
Wheelbase (mm) 1200
Fuel tank (L) 90
Rated bucket capacity (m³) 0.5
Rated load (t) 1.36

Note: This product is continuously improved with technological upgrading. In case of any difference between the items listed above and the actual product, the actual product shall prevail.
