SE390LCW

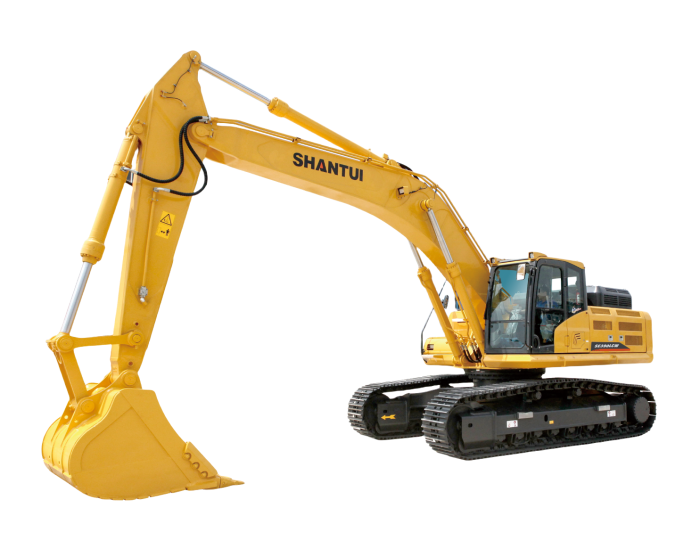

Large Excavator
SE390LCW
  • Operating weight(kg)
    38700
  • Engine power(kW/rpm)
    220/2000
  • Bucket capacity(m³)
    1.95
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Adaptability to diverse working conditions

Shantui’s world-class four wheels and one track find extensive applications in mining, water conservancy, highway and bridge construction, and various other work sites. The machine is equipped with triple parallel radiators, demonstrating exceptional performance y even in high-temperature environments.

Ease of maintenance and operation comfort

The engine hood is designed with three stages, allowing for easy opening and providing a wide opening angle. Fuel filters and oil filters are conveniently located on the right side for easy maintenance. Air filters are positioned on the left side, enabling hassle-free replacement of the filter elements. The high-density dust screen ensures effective dust protection and can be easily cleaned.

Configuration selling point

The machine features a world-leading turbocharged mechanical direct injection engine, delivering robust power; The machine is equipped with industry-leading hydraulic configurations, ensuring high reliability, minimal pressure loss, and efficient flow distribution. This enables smooth and steady operations during combined actions.

Parameter
Parameter SE390LCW
Operating weight(kg) 38700
Engine power(kW/rpm) 220/2000
Bucket capacity(m³) 1.95
External dimensions(mm) 11265*3200*3785
Bucket rod digging force(kN) 174
Bucket digging force(kN) 254
Rotating speed(r/min) 0-10.2
Travel speed(km/h) 3.0/5.0
Maximum digging height(mm) 10110
Maximum digging distance(mm) 10650
Maximum digging depth(mm) 5460
Emissions (Indicated as per international standards) Tier 3 / Stage III
