The standard configuration includes zero-tail swing and boom swing functions. The machine is equipped with several sets of optional attachment pipelines to meet the requirements of diverse working conditions.
The machine is equipped with the mechanical suspension seat, the high-power hot air system, and the 7-inch LCD touchscreen. The all-hydraulic pilot control features excellent maneuverability and allows for easy maintenance.
An industry top-tier brand engine delivers robust power. The machine is equipped with a load-sensitive control hydraulic system that operates at high system pressure, ensuring exceptional efficiency, as well as smooth and synchronized actions.

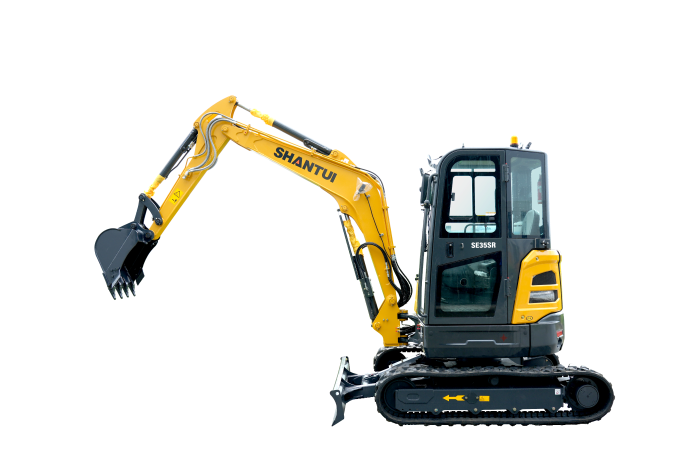

Parameter | SE35SR |
---|---|
Operating weight(kg) | 3800 |
Engine power(kW/rpm) | 18.2/2200 |
Bucket capacity(m³) | 0.12 |
External dimensions(mm) | 4880*1740*1880 |
Bucket rod digging force(kN) | 18.2 |
Bucket digging force(kN) | 30.4 |
Rotating speed(r/min) | 0-9 |
Travel speed(km/h) | 2.4/4.4 |
Maximum digging height(mm) | 4910 |
Maximum digging distance(mm) | 5500 |
Maximum digging depth(mm) | 3075 |
Emissions (Indicated as per international standards) | Europe Stage V |
