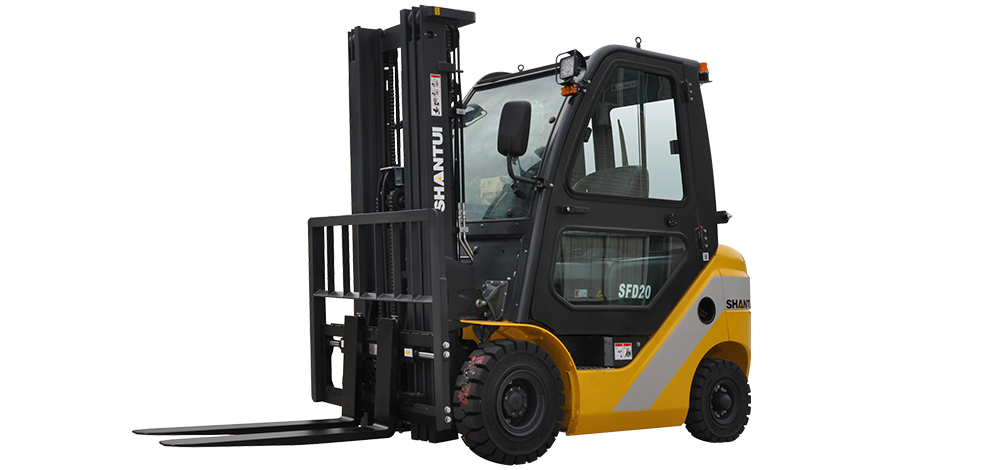

SFD20
Diesel Forklift
SFD20
  • Load Weight(kg)
    2000
  • Maximum lifting height(mm)
    4040
  • Wheelbase(mm)
    1500
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point

The core components, including the transmission and drive axle, are self-manufactured and meticulously matched with the dedicated engine, resulting in not only low fuel consumption but also substantial traction.

Ease of maintenance and operation comfort

The machine features a removable suspension frame, allowing for easy maintenance. It is equipped with an intelligent diagnostic system. The wide-view door frame and adjustable safety seat provide a comfortable driving and riding experience and convenient operation.

Adaptability to diverse working conditions

Optional door frames and forks with varying configurations are available to ensure smooth travel and flexible operation, catering to diverse logistics conditions.

Parameter
Parameter SFD20
Load Weight(kg) 2000
Maximum lifting height(mm) 4040
Wheelbase(mm) 1500
External dimensions 3490×1140×2002
Load center distance(mm) 500
Front overhang(mm) 435
Forward/Backward Tilting Angle of Gantry(°) 6°/12°
Emissions (Indicated as per international standards) Euro V
