Products Paver

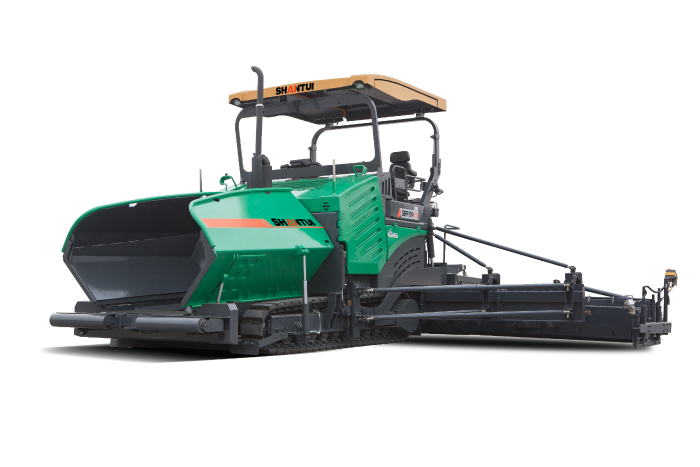

SRP09-C5 SA
Paver
SRP09-C5 SA
  • Maximum paving width(m)
    9
  • Maximum paving thickness(mm)
    500
  • Engine power(kW)
    213
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The machine is equipped with the Linde hydraulic system and a dedicated engine, delivering the highest traction in the industry, outstanding construction quality and exceptional efficiency. Shantui four wheels and one track ensure exceptional low-speed stability and superior reliability.
Ease of maintenance and operation comfort
The front hood features a wide opening angle and the filter elements are all located externally, simplifying maintenance with improved efficiency. The extendable canopy and rotatable seat enable better observation of material conveying and distribution actions.
Adaptability to diverse working conditions
With an unlimited expansion range of 3-5.7m, the machine is versatile enough to handle both water-stabilized and asphalt working conditions, making it well-suited for the construction of base and surface layers on highways of different grades.
Parameter
Parameter SRP09-C5 SA
Maximum paving width(m) 9
Maximum paving thickness(mm) 500
Engine power(kW) 213
External dimensions 7800*9000*3950
Engine model SC9DF290.1G3
Overall weight(T) 29
Minimum paving width(m) 3
Paving speed(m/min) 0-25
Travel speed(km/h) 0-3
Theoretical productivity(T/h) 1000
Hopper capacity(T) 16
Emissions(Indicated as per international standards) Eu stage IIIA
