  Products  Concrete Machinery

Concrete Batching Plant

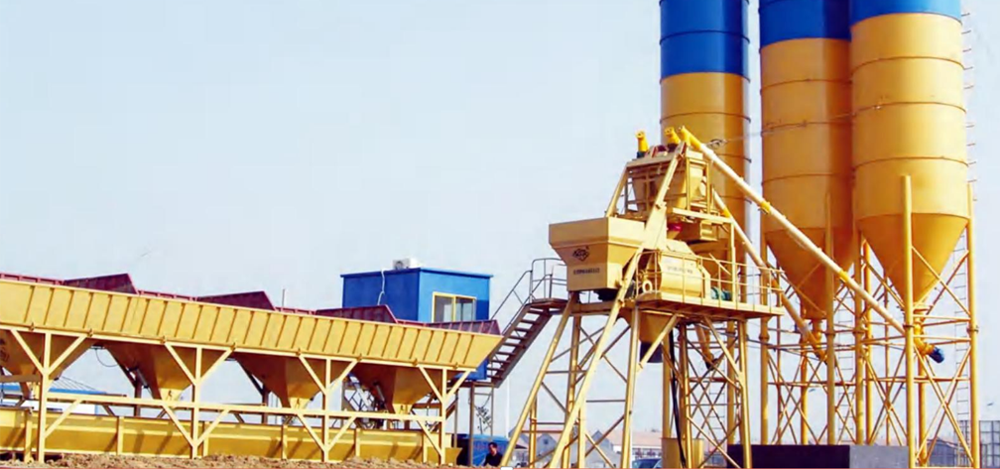

HZS75-3H

Rated production capacity(t/h)

75
Nominal capacity of mixing(kg) unit

1500
Overall power(kW)

130

inquiry

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Find nearby distributor

Characteristic

Configuration selling point

Modular structure: The machine is designed with a modular approach, enabling fast installation and convenient transportation. The aggregate measurement system utilizes both coarse and fine measurements, incorporating jitter measurement technology to ensure precise and accurate measurements.

Ease of maintenance and operation comfort

The lifting device is equipped with features such as reverse roll time protection and upper working limit self-detection, guaranteeing exceptional reliability.

Adaptability to diverse working conditions

The mixing device is designed in an intermittent spiral structure, enabling thorough material mixing and guaranteeing exceptional performance. This machine finds extensive application in various construction projects and the production of prefabricated components.

Parameter

Parameter	HZS75-3H
Rated production capacity(t/h)	75
Nominal capacity of mixing(kg) unit	1500
Overall power(kW)	130
Admixture weighing range and accuracy(kg)	30±1%
Aggregate weighing range and accuracy(kg)	1500±2%
Cement weighing range and accuracy(kg)	800±1%
Water weighing range and accuracy(kg)	300±1%
