With a special battery in combination the customized drive system, low energy consumption, it has large traction, energy saving and high efficiency features; a sealed hydraulic unit is equipped to reduce noise.
Ease of maintenance and operation comfort
It is equipped with trouble diagnosis system; with an emergency stop switch, the emergency braking can be made; the battery of quick-change design is easy for replacement and maintenance.
Adaptability to diverse working conditions
With small turning radius, it runs flexibly in the warehouse, so that it is suitable for work in the narrow space.
Parameter
Parameter

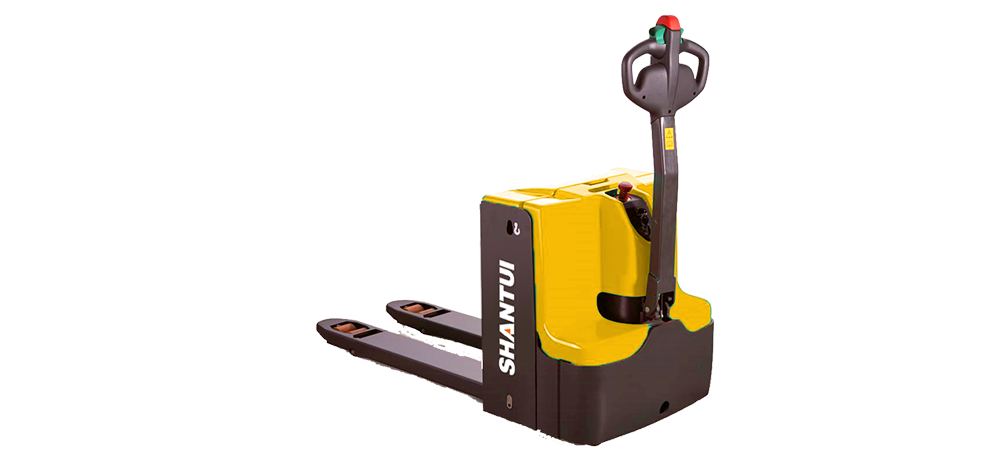

EP16-N01
Load Weight(kg)
1600
Maximum lifting height(mm)
120
Wheelbase(mm)
1261
External dimensions
1670×729×1335
Load center distance(mm)
600
Front overhang(mm)
892
Battery weight
150
Emissions (Indicated as per international standards)
