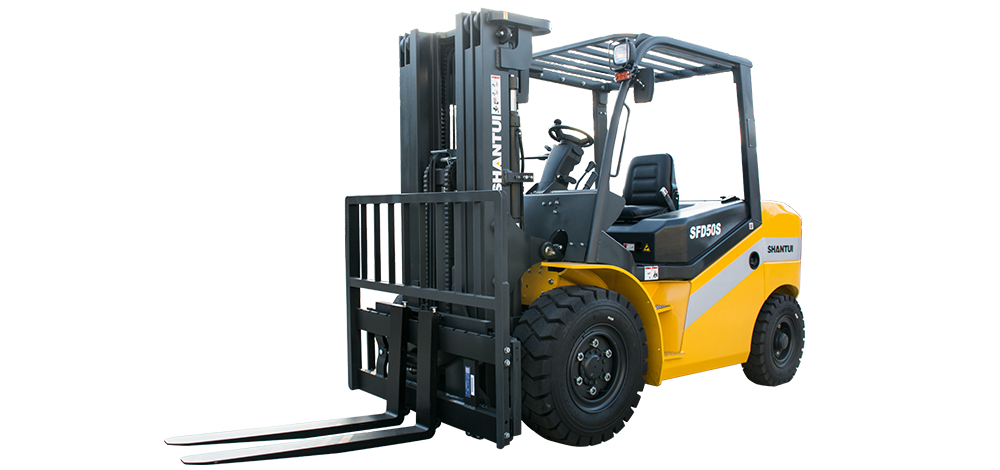

| Parameter | SFD50S |
|---|---|
| Load Weight(kg) | 5000 |
| Maximum lifting height(mm) | 4275 |
| Wheelbase(mm) | 2000 |
| External dimensions | 4230×1485×2390 |
| Load center distance(mm) | 500 |
| Front overhang(mm) | 567 |
| Forward/Backward Tilting Angle of Gantry(°) | 6°/12° |
| Emissions (Indicated as per international standards) | EU stage ⅢA |
