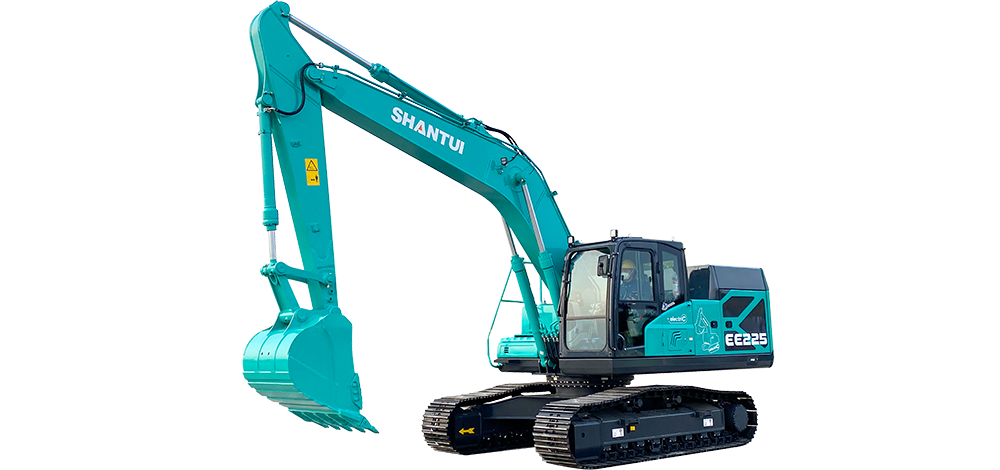

EE225-X2
Electric Excavator
EE225-X2
  • Operating weight(Kg)
    22400
  • Battery capacity
    423KW.h
  • Bucket capacity(m³)
    1.05
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point

The dedicated brand motor is reasonably matched with the Linde hydraulic system, resulting in higher efficiency and extended endurance. The adoption of Shantui four wheels and one track ensures long-lasting durability.

Ease of maintenance and operation comfort

The large-screen display allows for comprehensive display of machine parameters. The reasonable layout of filters brings about more efficient maintenance. With reduced maintenance items, the machine features low maintenance costs. It comes standard with an intelligent diagnostic control system, allowing for faster and more efficient service diagnostics.

Adaptability to diverse working conditions

Key components are subjected to reinforced design to meet the demands of diverse harsh working conditions. Zero emissions allow the machine to be well-suited for special working conditions with stringent emission requirements. The machine can find extensive applications in steel plants, power plants, municipal projects, port operations, confined spaces, and other conditions.

Parameter
Parameter EE225-X2
Operating weight(Kg) 22400
Battery capacity 423KW.h
Bucket capacity(m³) 1.05
External dimensions 9699×2980×3040
Bucket rod digging force(kN) 99/107
Bucket digging force(kN) 137/148
Rotating speed(r/min) 11
Travel speed(km/h) 5.1
Maximum digging height(mm) 10100
Maximum digging distance(mm) 9865
Maximum digging depth(mm) 6490
Emissions (Indicated as per international standards) Zero emissions
