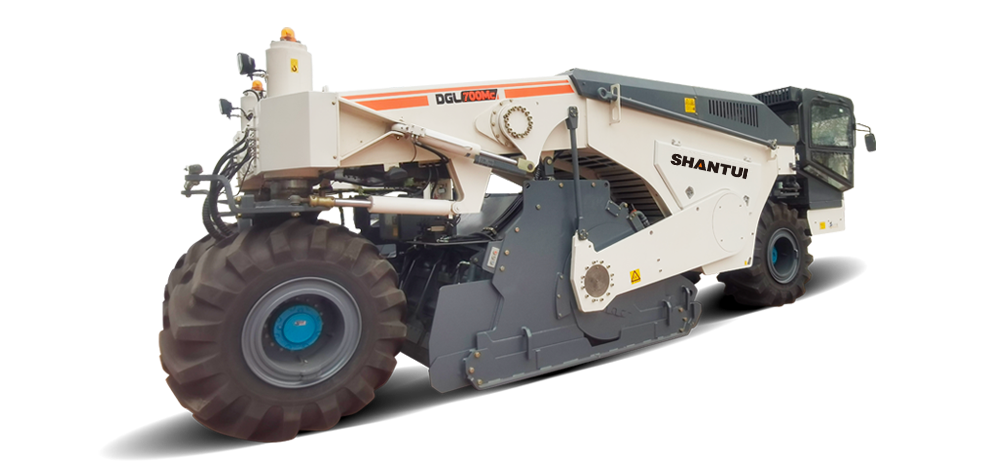

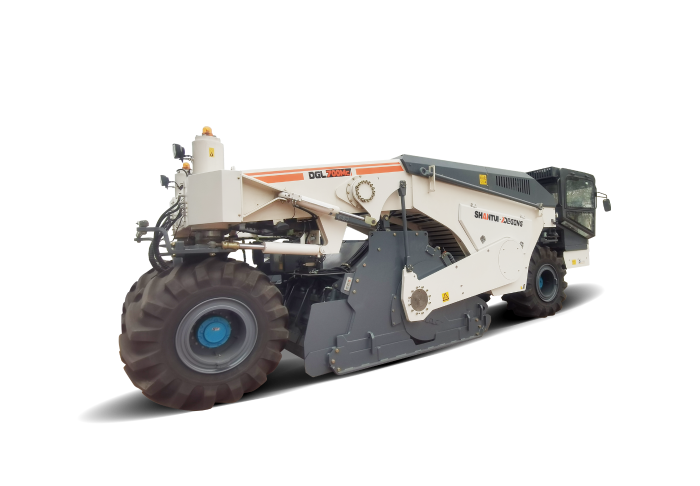

DGL700M-C
Cold Recycling Machine
DGL700M-C
  • Engine power(KW)
    522
  • Milling and mixing width(mm)
    2300
  • Operating Weight(Kg)
    33600
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point

The dedicated engine features three power modes: heavy-duty, medium-duty, and light-duty, allowing it to adapt to different construction conditions. The specially designed working rotor ensures efficient construction and uniform mixing. Key milling devices are self-developed and self-manufactured, ensuring their reliable and durable structure;

Ease of maintenance and operation comfort

The layout of maintenance points, such as the engine filter elements, is reasonable, allowing for easy maintenance by simply opening the engine hood. Fuel refilling is carried out using a ground refueling method. The spraying system features automatic cleaning or manual control for easy maintenance.

Adaptability to diverse working conditions

The machine is well-suited for one-time recycling of water-stabilized macadam base and cobblestone base asphalt pavements on national and provincial highways, as well as in-situ cold recycling of lime-ash base layers and stabilized soil mixing for base and subbase layers.

Parameter
Parameter DGL700M-C
Engine power(KW) 522
Milling and mixing width(mm) 2300
Operating Weight(Kg) 33600
External dimensions (length × width × height)mm 9290×3000×3160
Engine model QSK19
Milling and mixing depth(mm) 400
Working speed(m/min) 0~50
Travel speed(m/min) 0~12
Wheelbase(mm) 6230
Track width(mm) 1980
Emissions (marked in accordance with international standards) China-III
