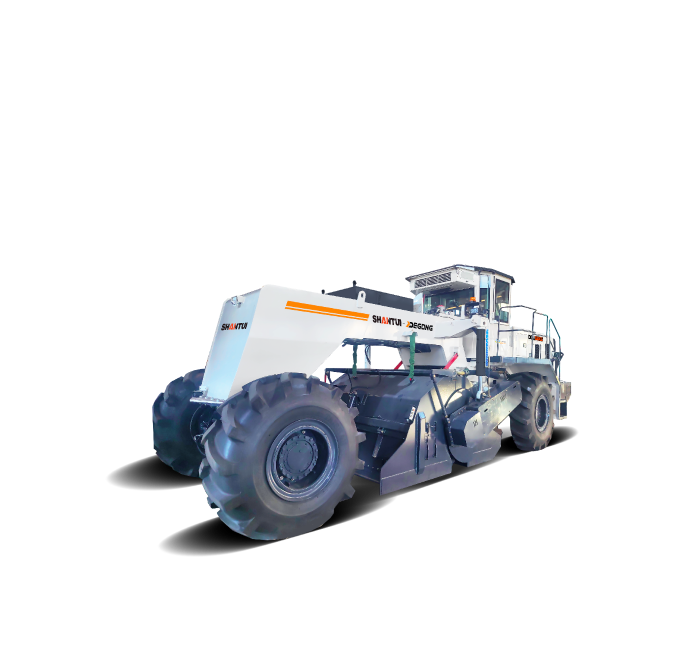

DGL530-C
Cold Recycling Machine
DGL530-C
  • Engine power(KW)
    390
  • Milling and mixing width(mm)
    2310
  • Operating Weight(Kg)
    22740
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point

The Weichai WP13 engine customized for the group is optimally matched with the hydraulic system of an industry renowned brand, resulting in robust power, energy efficiency, and reliable and efficient operation. Key milling devices are self-developed and self-manufactured, ensuring their reliable and durable structure;

Ease of maintenance and operation comfort

Equipped with a 10-inch LCD screen, the machine offers worry-free operation monitoring. The layout of maintenance points, such as engine filter elements, is reasonable, allowing for easy maintenance by simply opening the engine hood. Fuel refilling is carried out using a ground refueling method;

Adaptability to diverse working conditions

The machine is well-suited for in-situ cold recycling of general asphalt pavement and lime-ash base layers, as well as for stabilized soil mixing for base and subbase layers in rural and township roads.

Parameter
Parameter DGL530-C
Engine power(KW) 390
Milling and mixing width(mm) 2310
Operating Weight(Kg) 22740
External dimensions (length × width × height)mm 9606×3270×3520
Engine model WP13G530
Milling and mixing depth(mm) 400
Working speed(m/min) 0~48
Travel speed(m/min) 0~25
Wheelbase(mm) 5725
Track width(mm) Front:2250 Rear:2200
Emissions (marked in accordance with international standards) China-III
