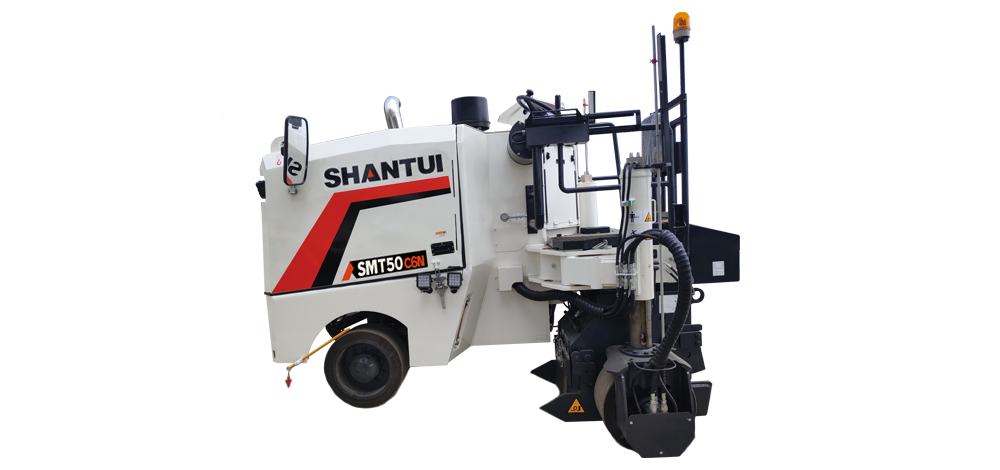

SMT50-C6N
Cold Milling Machine
SMT50-C6N
  • Engine power(kW/rpm)
    103/2300
  • Operating weight(kg)
    6600
  • Maximum milling width(mm)
    500
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point

The machine features a well-designed milling drum that ensures excellent milling efficiency and minimal vibration. It provides substantial traction and exceptional deep milling capability, with a small milling radius and flexible steering.

Ease of maintenance and operation comfort

The machine is equipped with an integrated air supply system for on-the-go air filter cleaning. Maintenance parts are standardized and universally compatible. The tool holder is designed with a positioning function, making maintenance convenient and cost-effective.

Adaptability to diverse working conditions

The machine is well-suited for urban road maintenance, edge milling following large-scale milling, and milling of manhole covers. It is also suitable for maintenance of ground surfaces such as bridge decks, underground garages, and factory workshops where access by large equipment is not possible.

Parameter
Parameter SMT50-C6N
Engine power(kW/rpm) 103/2300
Operating weight(kg) 6600
Maximum milling width(mm) 500
External dimensions 3340*2130*2395
Engine model WeichaiWP4.1
Maximum milling depth(mm) 180
Number of milling tools 54
Milling diameter including tools(mm) 670
Conveyor belt width(mm) /
Operating speed(m/min) 0-50
Travel speed(km/h) 0-8.0
Emissions (Indicated as per China standards) Eu stage IIIA
Inquiry
