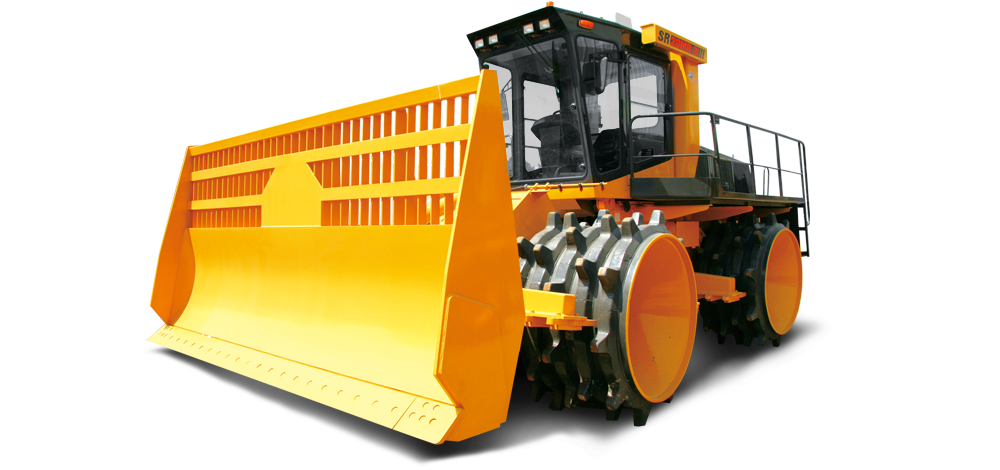

SR28MR-3
Landfill
SR28MR-3
  • External dimensions(mm)
    7940*3660*3960
  • Engine brand
    Weichai
  • Power/speed(kW/rpm)
    178/2200
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The Weichai WP10 engine, customized for the group, is meticulously matched with a hydro-mechanical power drive system, to deliver robust power, exceptional efficiency, and energy savings, exceptionally well-suited for challenging garbage handling environments. The large-capacity blade enhances operational efficiency. The specialized compacting wheels ensure effective rolling and crushing of garbage. The compacting teeth, made of corrosion-resistant and wear-resistant materials, extend the service life of the compacting wheels. Equipped with a standard spray system, the machine enables disinfection of the garbage during the compacting process, further enhancing work efficiency.
Ease of maintenance and operation comfort
The cab of the machine is fully sealed, providing optimal protection for the operator in harsh working environments. The machine travel is controlled using a single shifting lever, while steering is facilitated by a steering wheel, enhancing operator’s efficiency and reducing fatigue. The lifting of the blade is under the control of an electronic control handle, allowing for straightforward, flexible, and convenient operation.
Adaptability to diverse working conditions
The machine is primarily used for leveling, crushing, and compacting garbage in landfill sites, urban garbage disposal plants, etc.
Parameter
Parameter SR28MR-3
External dimensions(mm) 7940*3660*3960
Engine brand Weichai
Power/speed(kW/rpm) 178/2200
Operating weight(kg) 28000
Front and rear load distribution(kg) 14000/14000
Compaction width(mm) 3660
Minimum turning radius(mm) 7250
Blade capacity(m³) 12
Maximum blade lifting height/soil penetration depth(mm) 1146/150
Gradeability 100
Speed(km/h) For4.4/6.8/10;Rev4.4/6.8
Emissions (Indicated as per China standards) Eu stage IIIA
