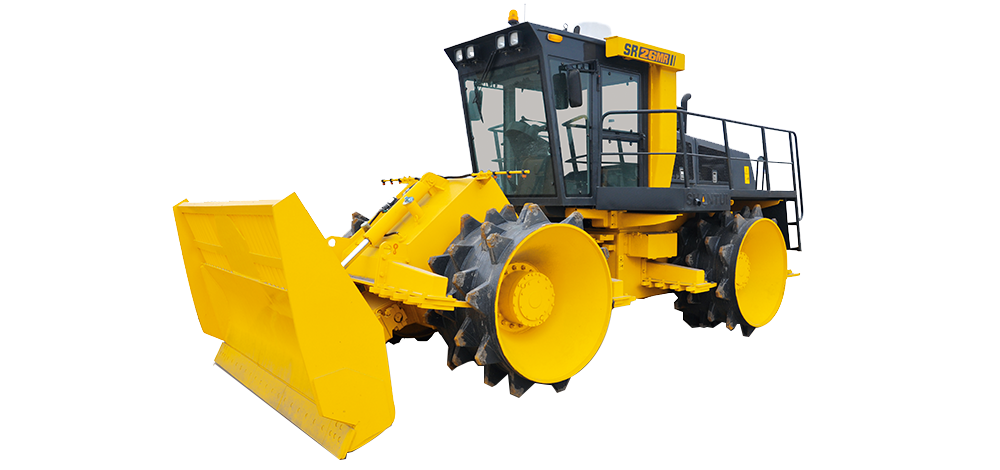

| Parameter | SR26MR-3 |
|---|---|
| External dimensions(mm) | 7940*3660*3925 |
| Engine brand | Weichai |
| Power/speed(kW/rpm) | 178/2200 |
| Operating weight(kg) | 26000 |
| Front and rear load distribution(kg) | 13000/13000 |
| Compaction width(mm) | 3660 |
| Minimum turning radius(mm) | 7250 |
| Blade capacity(m³) | 12 |
| Maximum blade lifting height/soil penetration depth(mm) | 1150/165 |
| Gradeability | 100 |
| Speed(km/h) | For4.4/6.8/10;Rev4.4/6.8 |
| Emissions (Indicated as per China standards) | Eu stage IIIA |
