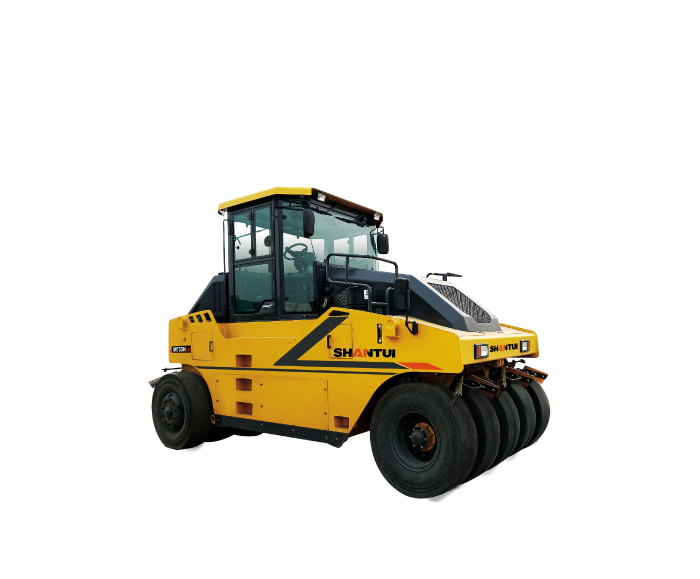

SRT30H-C6
Tyre
SRT30H-C6
  • External dimensions(mm)
    4920*2895*3410
  • Engine brand
    Weichai
  • Power/speed(kW/rpm)
    147/2000
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
With hydraulic drive, it starts and stops smoothly with small impact, and has high compaction quality; the front wheel with swaying structure guarantees uniform compaction; the four-stage braking system is safe and reliable; the rotational molded water tank has high cleanliness and is not prone to blockage;
Ease of maintenance and operation comfort
The handle, switch, seat and steering wheel are integrated for easy operation and in accordance with ergonomics; the hydraulic filter elements, water pump, air reservoir, battery, air filter, etc. can be maintained by opening the hood, and the lubrication points are led outward for easy maintenance.
Adaptability to diverse working conditions
It’s suitable for the compacting operations of diversified materials, including lime-ash soil, water stabilizing material, and asphalt, and can meet the demands of diversified construction conditions, including plains and mountainous regions.
Parameter
Parameter SRT30H-C6
External dimensions(mm) 4920*2895*3410
Engine brand Weichai
Power/speed(kW/rpm) 147/2000
Operating weight(kg) 30000
Minimum Operating Mass(kg) 16450
Volume of Water Tank(L) 630
Minimum turning radius(mm) 8800
Compaction width(mm) 2750
Pressure to the ground(KPa) 200-460
Gradeability 0.22
Speed(km/h) 0-6,0-13
Emissions (Indicated as per China standards) Eu stage IIIA
Inquiry
Our 400 customer service centers are divided into information communication centers,centers to improve customer satisfaction
