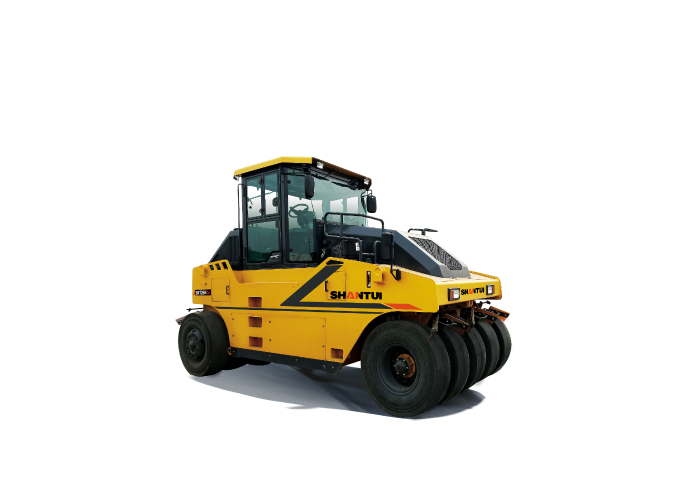

| Parameter | SRT26H-C6 |
|---|---|
| External dimensions(mm) | 4920*2895*3410 |
| Engine brand | Weichai |
| Power/speed(kW/rpm) | 147/2000 |
| Operating weight(kg) | 26000 |
| Minimum Operating Mass(kg) | 16450 |
| Volume of Water Tank(L) | 630 |
| Minimum turning radius(mm) | 8800 |
| Compaction width(mm) | 2750 |
| Pressure to the ground(KPa) | 200-420 |
| Gradeability | 0.22 |
| Speed(km/h) | 0-6,0-13 |
| Emissions (Indicated as per China standards) | Eu stage IIIA |
