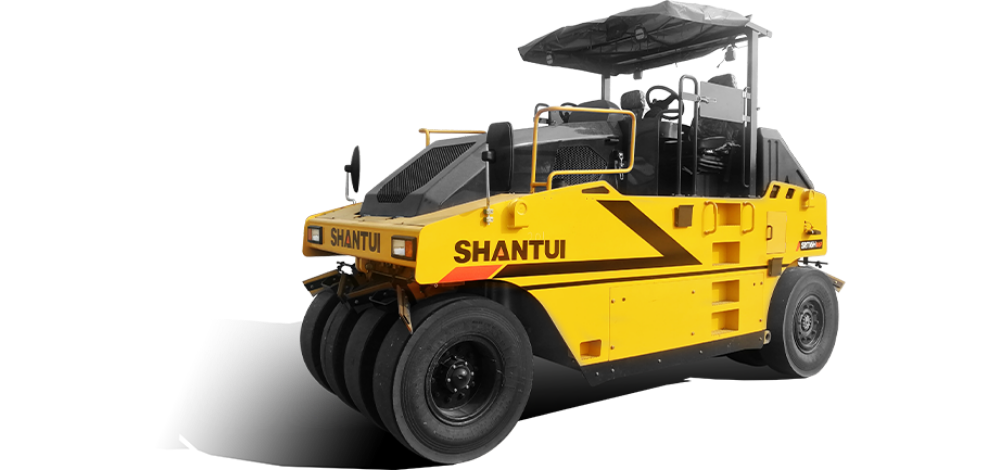

SRT16H-B6F
Tyre
SRT16H-B6F
  • External dimensions(mm)
    4920*2332*3428
  • Engine brand
    Shangchai
  • Power/speed(kW/rpm)
    103/2000
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
With hydraulic drive, it starts and stops smoothly with small impact, and has high compaction quality; the front wheel with swaying structure guarantees uniform compaction; the four-stage braking system is safe and reliable; the rotational molded water tank has high cleanliness and is not prone to blockage;
Ease of maintenance and operation comfort
The handle, switch, seat and steering wheel are integrated for easy operation and in accordance with ergonomics; the hydraulic filter elements, water pump, air reservoir, battery, air filter, etc. can be maintained by opening the hood, and the lubrication points are led outward for easy maintenance.
Adaptability to diverse working conditions
It’s suitable for the compacting operations of diversified materials, including lime-ash soil, water stabilizing material, and asphalt, and can meet the demands of diversified construction conditions, including plains and mountainous regions.
Parameter
Parameter SRT16H-B6F
External dimensions(mm) 4920*2332*3428
Engine brand Shangchai
Power/speed(kW/rpm) 103/2000
Operating weight(kg) 16000
Minimum Operating Mass(kg) 10700
Volume of Water Tank(L) 630
Minimum turning radius(mm) 7575
Compaction width(mm) 2250
Pressure to the ground(KPa) 200-380
Gradeability 0.3
Speed(km/h) 0-7,0-14
Emissions (Indicated as per China standards) Eu stage II
