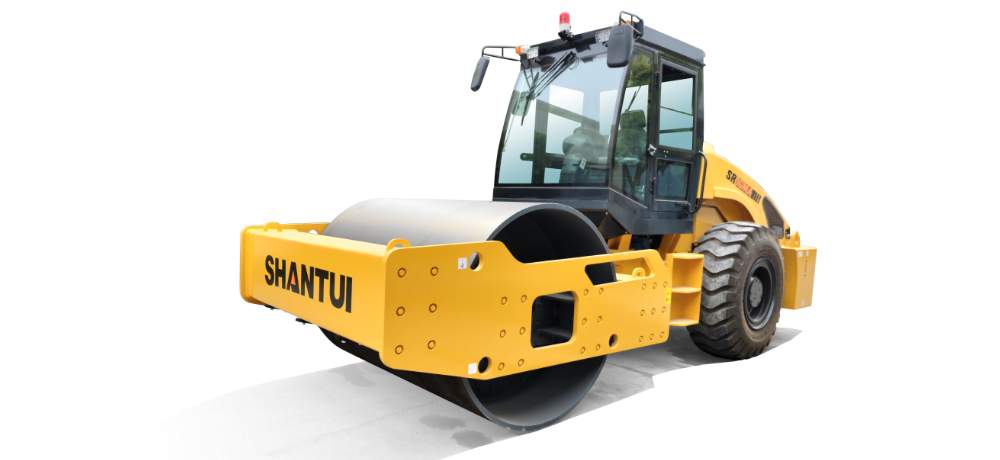

SR16MA
Single Drum
SR16MA
  • External dimensions(mm)
    6240*2280*3080
  • Engine brand
    Weichai
  • Power/speed(kW/rpm)
    118/2000
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
With the mechanically-driven high-torque special gearbox for rollers integrating a synchronizer, it is light for gear shifting; the single frequency & dual amplitude, electronically-controlled delay vibration and large excitation force guarantees good compaction performance; with the hydraulic steering and articulated frame, it is light and flexible in steering;
Ease of maintenance and operation comfort
The rear hood can be opened at a large angle for easy maintenance; the standard cab can be fitted with optional dual-purpose air conditioner
Adaptability to diverse working conditions
It is suitable for the compaction of the base course and sub-base course of large-scale projects such as highways, railways and airports, and can compact the non-adhesive materials and semi-adhesive materials such as sand, gravel, crushed stone, rock fill, etc. It can be equipped with optional lugs, with a variety of functions, which is suitable for clay and other working conditions
Parameter
Parameter SR16MA
External dimensions(mm) 6240*2280*3080
Engine brand Weichai
Power/speed(kW/rpm) 118/2000
Operating weight(kg) 16000
Front and rear load distribution 8250/7750
Vibration frequency low/high(Hz) 30
Minimum turning radius(mm) 6500
Excitation force(kN) 325/165
Amplitude(mm) 1.8/0.9
Gradeability 0.3
Speed(km/h) For:2.5/5.0/10.5 ;Rev: 2.5/5.0
Emissions (Indicated as per China standards) Eu stage II
