  Products  Compactor

Mini

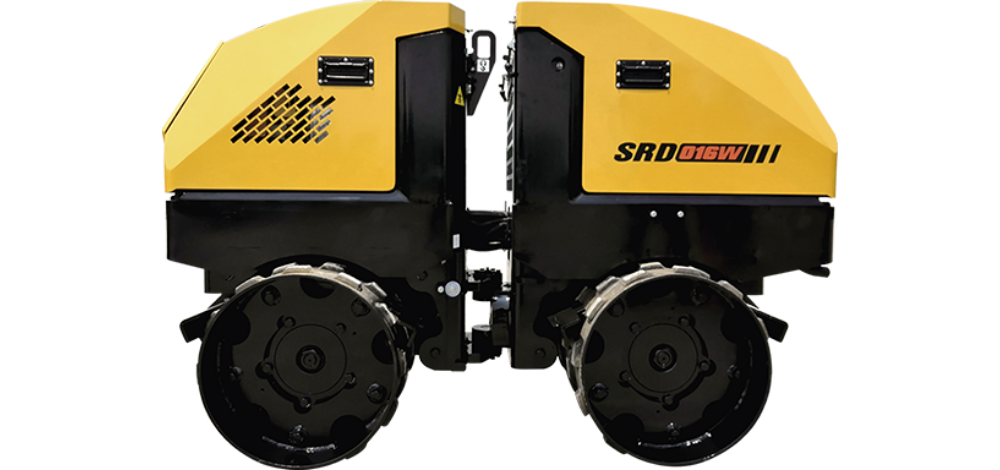

SRD016W

External dimensions(mm)

1900*850*1300
Engine brand

Yanmar
Power/speed(kW/rpm)

17.8/3000

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

The special engine reasonably matches with the traveling hydraulic system for high efficiency and excellent compaction effect; the remote control system with the capability of automatic control ensures stable performance

Ease of maintenance and operation comfort

The maintenance points are arranged reasonably, and the hood can be opened for easy maintenance.

Adaptability to diverse working conditions

With small working radius, it is suitable for work in a narrow area, and has been used widely in ditch backfilling, underground work, construction of road corners and rural construction etc.

Parameter

View online

Parameter	SRD016W
External dimensions(mm)	19008501300
Engine brand	Yanmar
Power/speed(kW/rpm)	17.8/3000
Operating weight(kg)	1635
Front and Rear Static Linear Loads(N/cm)	98/90
Vibration frequency low/high(Hz)	42
Minimum turning radius(mm)	/
Excitation force(kN)	70/35
Amplitude(mm)	1.7
Gradeability	0.5
Speed(km/h)	0-1.2，0-2.4
Emissions (Indicated as per China standards)	EPA Tier4 Final(EU Stage)
