  Products  Compactor

Mini

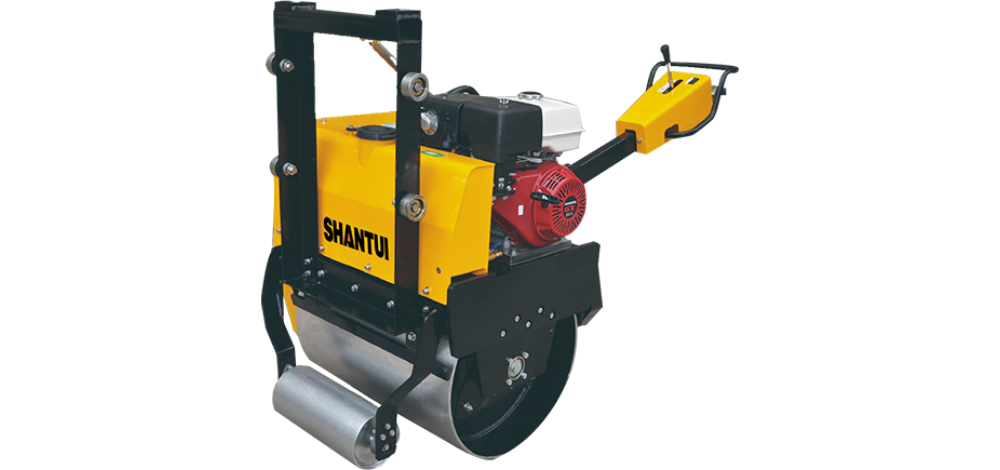

SR500L

External dimensions(mm)

1100*840*1820
Engine brand

Changchai
Power/speed(kW/rpm)

6/3600

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

The special engine reasonably matches with the traveling hydraulic system for high reliability;

Ease of maintenance and operation comfort

The maintenance points are arranged reasonably, and the hood can be opened for easy maintenance.

Adaptability to diverse working conditions

With small working radius, it is suitable for work in a narrow area, and has been used widely in ditch backfilling, underground work, construction of road corners and rural construction etc.

Parameter

View online

Parameter	SR500L
External dimensions(mm)	11008401820
Engine brand	Changchai
Power/speed(kW/rpm)	6/3600
Operating weight(kg)	542
Front and Rear Static Linear Loads(N/cm)	65
Vibration frequency low/high(Hz)	70
Minimum turning radius(mm)	/
Excitation force(kN)	16
Amplitude(mm)	0.5
Gradeability	0.3
Speed(km/h)	0-3
Emissions (Indicated as per China standards)	Eu stage II
