  Products  Compactor

Mini

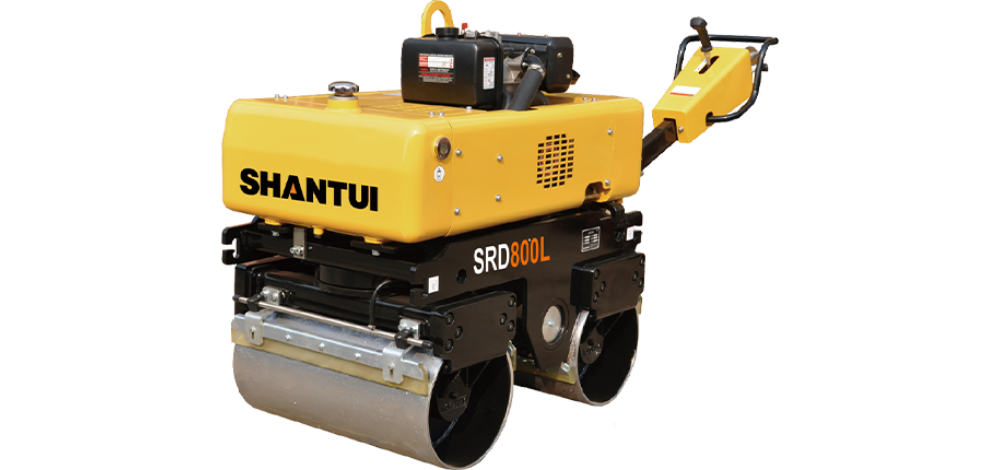

SRD800L

External dimensions(mm)

1460*850*1800
Engine brand

Changchai
Power/speed(kW/rpm)

8/3600

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

With the special heavy-duty variable hydraulic system, the speed can be changed smoothly for excellent compaction performance; with hydraulic steering, it is flexible and light in steering

Ease of maintenance and operation comfort

The traveling, vibration compaction and steering operations can be implemented centrally on the handle, which is easy to operate; the maintenance points are arranged reasonably, and the hood can be opened for easy maintenance

Adaptability to diverse working conditions

With small working radius, it is suitable for work in a narrow area, and has been used widely in ditch backfilling, underground work, construction of road corners and rural construction etc.

Parameter

View online

Parameter	SRD800L
External dimensions(mm)	14608501800
Engine brand	Changchai
Power/speed(kW/rpm)	8/3600
Operating weight(kg)	860
Front and Rear Static Linear Loads(N/cm)	60.7/65.7
Vibration frequency low/high(Hz)	65
Minimum turning radius(mm)	/
Excitation force(kN)	17
Amplitude(mm)	0.5
Gradeability	0.3
Speed(km/h)	0-3.5
Emissions (Indicated as per China standards)	Eu stage II
