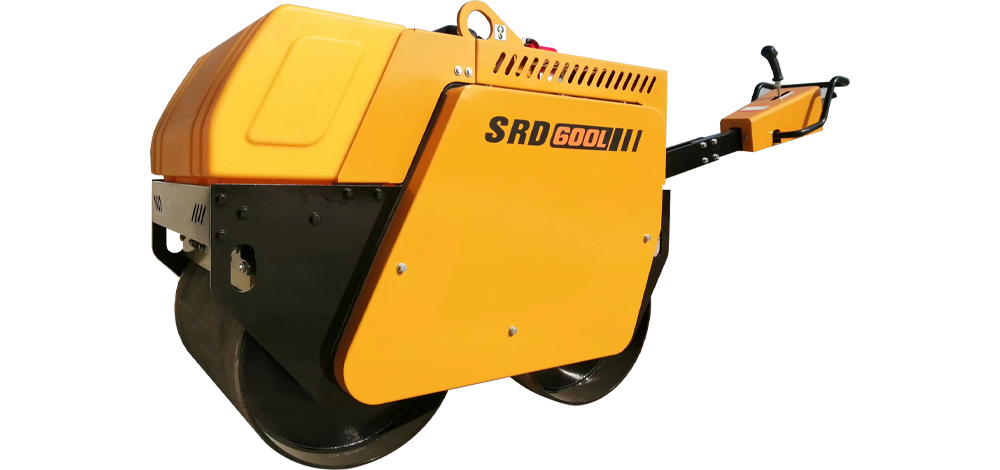

SRD600L
Mini
SRD600L
  • External dimensions(mm)
    1460*820*1800
  • Engine brand
    Changchai
  • Power/speed(kW/rpm)
    6/3600
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
With special variable hydraulic system, the variable speed traveling performance is reliable and stable
Ease of maintenance and operation comfort
The large plastic water tank without rust extends the work duration; the forward and backward traveling, and the vibration compaction operations can be implemented centrally on the handle, which is more convenient to control; the maintenance points are arranged reasonably, and the hood can be opened for easy maintenance
Adaptability to diverse working conditions
With small working radius, it is suitable for work in a narrow area, and has been used widely in ditch backfilling, underground work, construction of road corners and rural construction etc.
Parameter
Parameter SRD600L
External dimensions(mm) 1460*820*1800
Engine brand Changchai
Power/speed(kW/rpm) 6/3600
Operating weight(kg) 583
Front and Rear Static Linear Loads(N/cm) 45/50
Vibration frequency low/high(Hz) 70
Minimum turning radius(mm) /
Excitation force(kN) 15
Amplitude(mm) 0.6
Gradeability 0.25
Speed(km/h) 0-3
Emissions (Indicated as per China standards) Eu stage II
