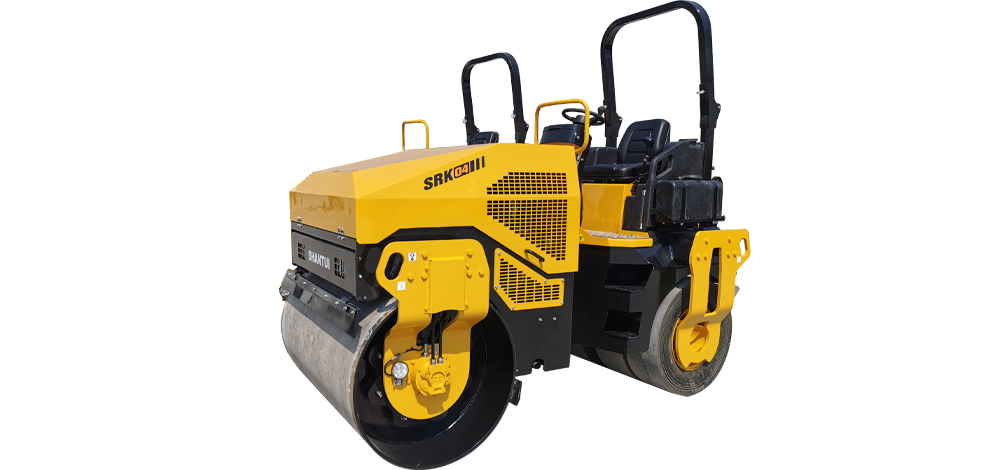

| Parameter | SRK04 |
|---|---|
| External dimensions(mm) | 2850*1520*2200 |
| Engine brand | Yanmar |
| Power/speed(kW/rpm) | 35/3000 |
| Operating weight(kg) | 4000 |
| Front and Rear Static Linear Loads(N/cm) | 150 |
| Vibration frequency low/high(Hz) | 60 |
| Minimum turning radius(mm) | 3000 |
| Excitation force(kN) | 40 |
| Amplitude(mm) | 0.5 |
| Gradeability | 0.4 |
| Speed(km/h) | 0-12 |
| Emissions (Indicated as per China standards) | Eu stage IIIA |
