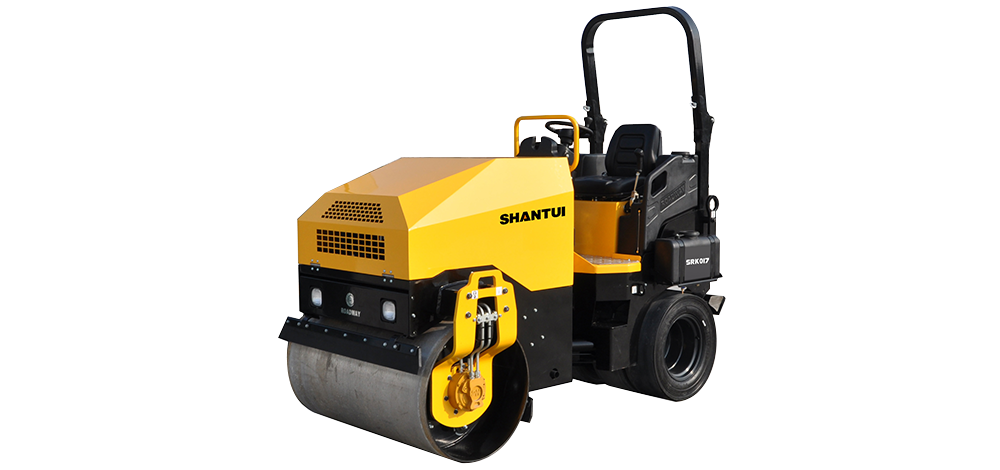

| Parameter | SRK017 |
|---|---|
| External dimensions(mm) | 2230*1100*2450 |
| Engine brand | Yanmar |
| Power/speed(kW/rpm) | 17.8/3000 |
| Operating weight(kg) | 1700 |
| Front and Rear Static Linear Loads(N/cm) | 70 |
| Vibration frequency low/high(Hz) | 65 |
| Minimum turning radius(mm) | 2000 |
| Excitation force(kN) | 25 |
| Amplitude(mm) | 0.5 |
| Gradeability | 0.3 |
| Speed(km/h) | 0-8 |
| Emissions (Indicated as per China standards) | EPA Tier4 Final(EU Stage) |
