DH46-M RS

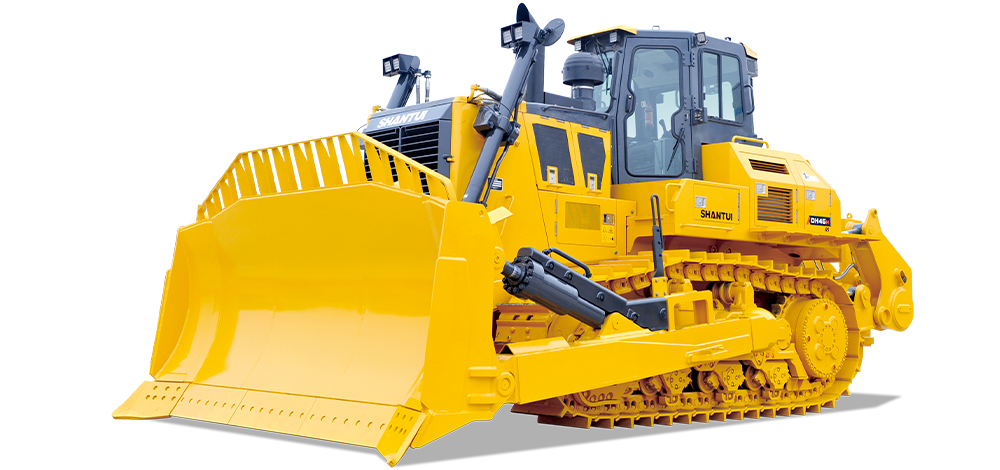

Large Bulldozer
DH46-M RS
  • Overall weight(kg)
    56200
  • Engine brand
    X15-C525
  • Rated power/rated speed(kW/rpm)
    392/1800
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The dedicated engine is paired with Linde hydraulic components, ensuring robust power and exceptional efficiency. The machine offers multiple working modes, including heavy-duty and economical operations, resulting in energy savings. The automatic gear shifting function enhances operational efficiency. The reversible cab design facilitates maintenance.
Ease of maintenance and operation comfort
Centralized layout of filters facilitates easy maintenance. Spacious and well-sealed cab offers excellent visibility. Intelligent diagnostic system monitors various parameters in real time.
Adaptability to diverse working conditions
The K-type thrust wheel suspension system delivers robust shock resistance, large ground clearance, and excellent passability. A range of track options is available to accommodate diverse and complex working conditions.
Parameter
Parameter DH46-M RS
Overall weight(kg) 56200
Engine brand X15-C525
Rated power/rated speed(kW/rpm) 392/1800
Machine external dimensions(mm) 9325x4320x3990
Track center distance(mm) 2260
Track shoe width(mm) 610/660/710
Ground contact length(mm) 3532
Fuel tank capacity(L) 880
Blade type ROCK
Blade capacity(m³) 13.7
Emissions (Indicated as per international standards) Eu stageV/T4F
