Large Bulldozer

SD90-C5

Overall weight(kg)

106260
Engine brand

Cummins
Rated power/rated speed(kW/rpm)

708/2100

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

The dedicated engine delivers robust power and exceptional efficiency. The electronic control transmission allows for preset gear selection. The Shantui K-type suspension four wheels and one track exhibit excellent ground adaptability and remarkable durability.

Ease of maintenance and operation comfort

Centralized layout of filters facilitates easy maintenance. Spacious and well-sealed cab offers excellent visibility. Intelligent diagnostic system monitors various parameters in real time.

Adaptability to diverse working conditions

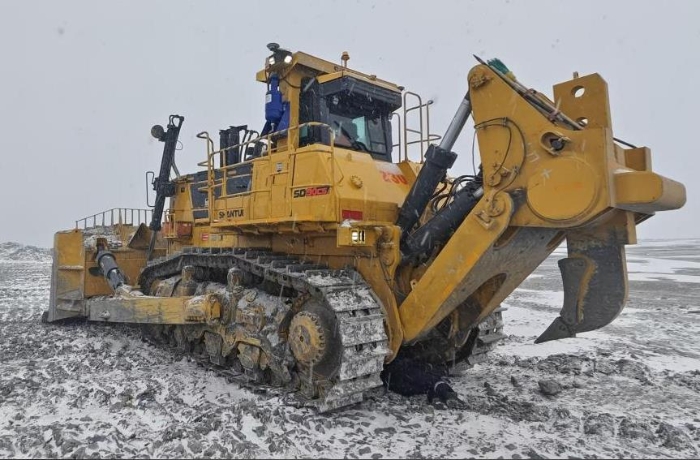

Featuring a U-shaped blade and a coal scoop constructed from high-strength materials, along with a robust single-tooth ripper and reinforced heavy-duty tracks, the machine is well-suited for operations in extremely harsh mining conditions.

Parameter

View online

Parameter	SD90-C5
Overall weight(kg)	106260
Engine brand	Cummins
Rated power/rated speed(kW/rpm)	708/2100
Machine external dimensions(mm)	1150052654590
Track center distance(mm)	2770
Track shoe width(mm)	710
Ground contact length(mm)	4520
Fuel tank capacity(L)	1638
Blade type	Semi-U blade
Blade capacity(m³)	39
Emissions (Indicated as per international standards)	Eu stageⅢA
