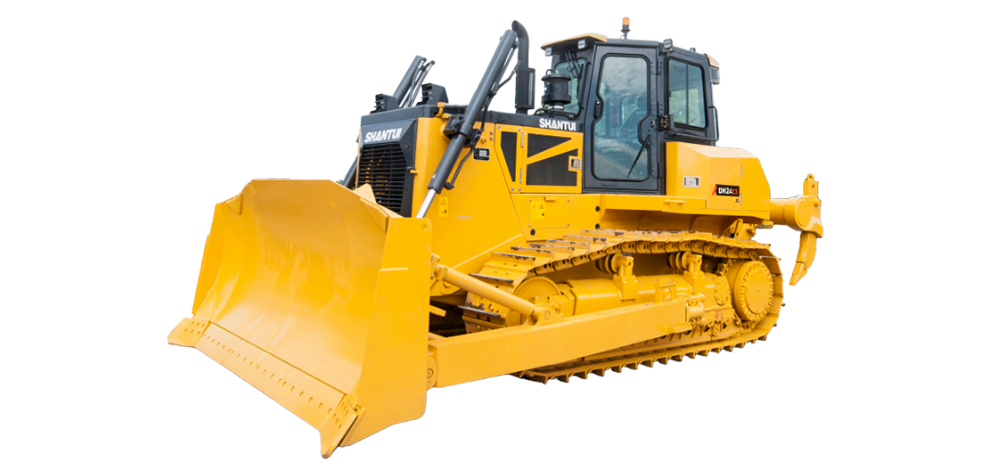

DH24-C3 XL
Medium Bulldozer
DH24-C3 XL
  • Overall weight(kg)
    23820
  • Engine brand
    WEICHAI
  • Rated power/rated speed(kW/rpm)
    195kW/1900rpm
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The machine is equipped with the Weichai WP12 engine and Linde hydraulic components, meticulously matched to create a golden power control assembly. It is further enhanced by the self-developed machine control system, resulting in straightforward control, exceptional efficiency, and fuel savings. The Shantui-specific chassis system consisting of four wheels and one track delivers an extended service life and high reliability.
Ease of maintenance and operation comfort
The static-pressure drive system ensures high reliability. The integrated positive-pressure cab provides spacious and comfortable working environment with low noise. The intelligent touchscreen instrument monitors operating parameters and fuel consumption in real time, with automatic fault alarm. The electro-hydraulic control operation is light and labor-saving. The design allows easy access to maintenance and inspection of engine, hydraulic components, and electrical parts;
Adaptability to diverse working conditions
Optional configurations include straight tilt blade, U-blade, three-tooth ripper, single-tooth ripper, 3D auxiliary remote control, meeting diverse operation requirements.
SHANTUI Smart Constuction(SSC)

It can achieve AI upgrades based on the SSC (SHANTUI Smart Construction) technology platform, integrating AI and big data-related technologies to establish a fully intelligent closed-loop system of "perception-decision-execution." This enables working condition assessment, dynamic path optimization, and centimeter-level precision control of the blade. As a technological innovation, it leads the leap toward intelligent construction machinery, serving as a model for the industry's transition from "mechanical operation" to "intelligent decision-making.".

Parameter
Parameter DH24-C3 XL
Overall weight(kg) 23820
Engine brand WEICHAI
Rated power/rated speed(kW/rpm) 195kW/1900rpm
Machine external dimensions(mm) 5940*3640*3335
Track center distance(mm) 2000
Track shoe width(mm) 560/610/660
Ground contact length(mm) 3050
Fuel tank capacity(L) 450
Blade type Semi-U blade
Blade capacity(m³) 6.5
Emissions (Indicated as per international standards) Eu stageⅢA

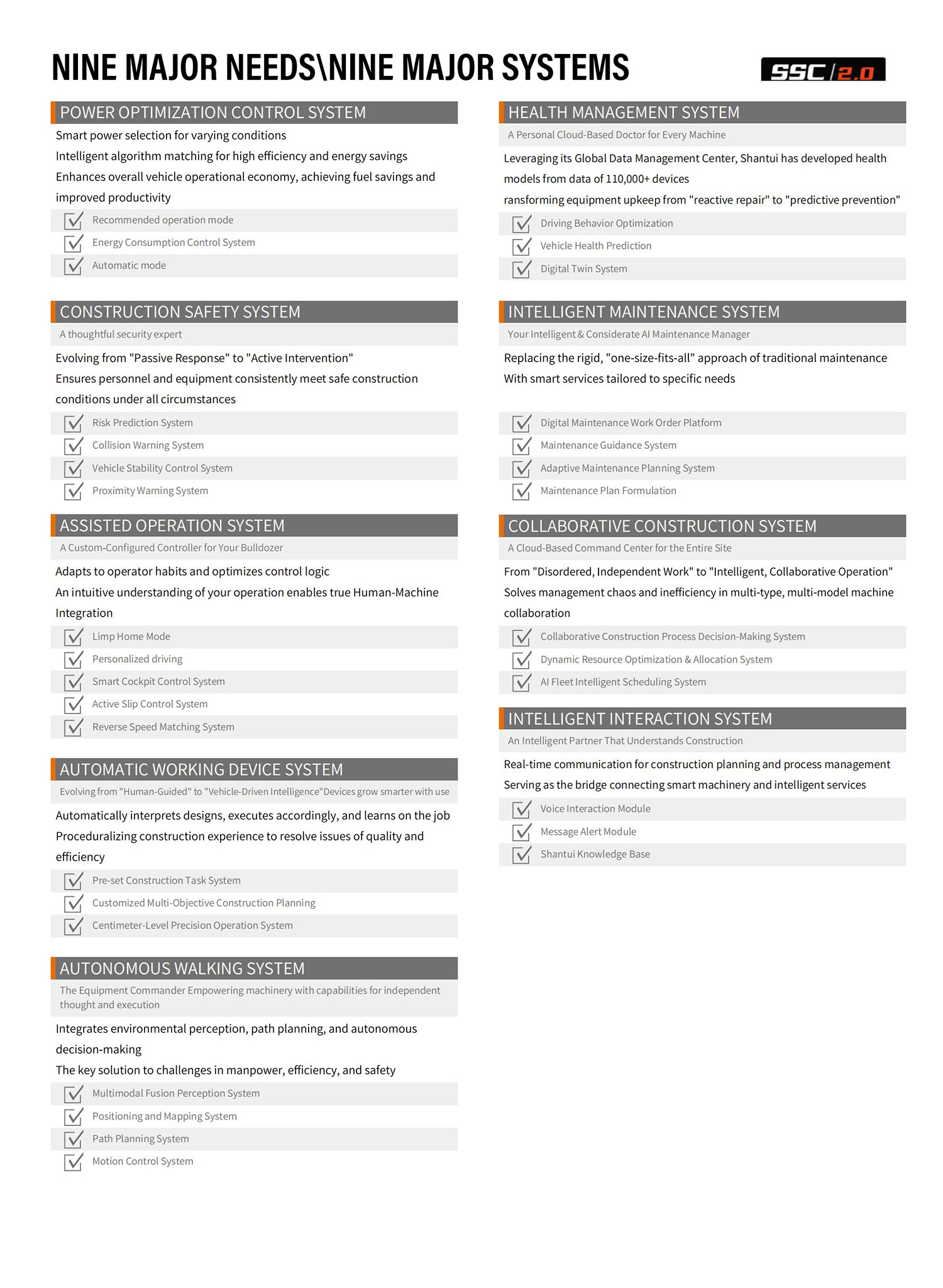

Optional AI Function Modules

SSC Function DetailsSub-functionReadyStdProMaxUltra
Intelligent Interaction System (IIS)Knowledge Base Q&A
Voice Control
Equipment Health Management (EHM)Vehicle Status Monitoring
Fault Alarms
Intelligent Equipment Maintenance (IEM)Maintenance Reminder

Operation & Maintenance Manual/Spare Parts Catalog Query

Power Management System(PMS)Operation Mode Switching
Assisted Operation System (AOS)Gear Presetting
Automatic Blade Lifting When Reversing
5G Long-Range Remote Control


Construction Safety System (CSS)Collision Warning


Edge Warning



Anti-Rollover Warning


360° Intelligent Perception
Automated Construction System (ACS)Implement Guidance
Automatic Implement Control
Automated Utility Construction System (AUCS)Path Planning



Motion Control



Longitudinal Operation Active Judgment



Coordinated Construction System (CCS)Single Machine Construction Data Upload
