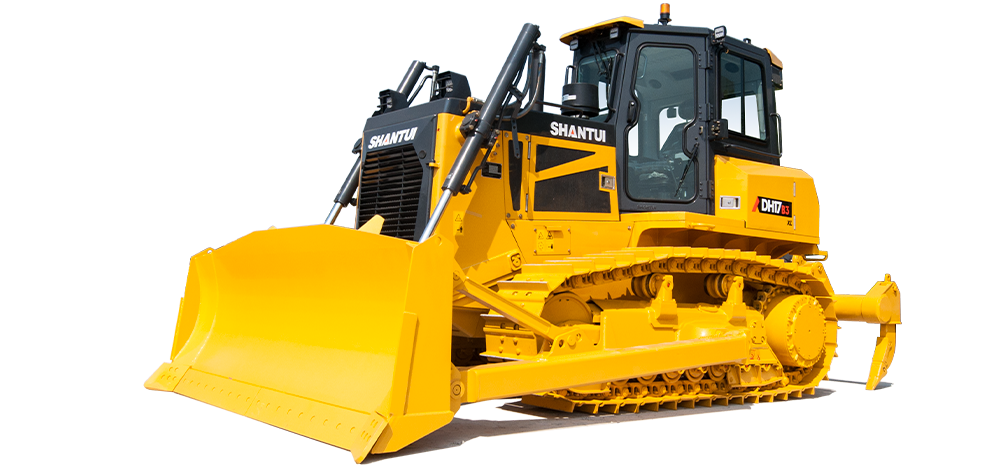

DH17-B3 XL
Medium Bulldozer
DH17-B3 XL
  • Overall weight(kg)
    17780
  • Engine brand
    WEICHAI
  • Rated power/rated speed(kW/rpm)
    140/1800
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
The machine is equipped with the Weichai WD10 engine and Linde hydraulic components, meticulously matched to create a golden power control assembly. It is further enhanced by the self-developed machine control system, resulting in straightforward control, exceptional efficiency, and fuel savings. The Shantui-specific chassis system consisting of four wheels and one track delivers an extended service life and high reliability.
Ease of maintenance and operation comfort
The machine features an integrated positive pressure cab that ensures a low-noise environment. The intelligent touchscreen instrument includes fault self-diagnosis capability. The lightweight and effortless electro-hydraulic controls enable loaded steering and pivot steering. The machine lubrication, engine, hydraulic components, electrical components, and other maintenance parts are all arranged on the exterior of the machine, facilitating convenient maintenance and overhaul.
Adaptability to diverse working conditions
Multiple optional attachments are available, including the straight tilt blade, semi-U blade, and three-tooth ripper, to meet diverse operational requirements.
SHANTUI Smart Constuction(SSC)

It can achieve AI upgrades based on the SSC (SHANTUI Smart Construction) technology platform, integrating AI and big data-related technologies to establish a fully intelligent closed-loop system of "perception-decision-execution." This enables working condition assessment, dynamic path optimization, and centimeter-level precision control of the blade. As a technological innovation, it leads the leap toward intelligent construction machinery, serving as a model for the industry's transition from "mechanical operation" to "intelligent decision-making.".

Parameter
Parameter DH17-B3 XL
Overall weight(kg) 17780
Engine brand WEICHAI
Rated power/rated speed(kW/rpm) 140/1800
Machine external dimensions(mm) 5465x3388x3154
Track center distance(mm) 1880
Track shoe width(mm) 510/560/610
Ground contact length(mm) 2675
Fuel tank capacity(L) 352
Blade type Semi-U blade/Straight blade
Blade capacity(m³) 4.7/3.6
Emissions (Indicated as per international standards) Eu stageⅡ

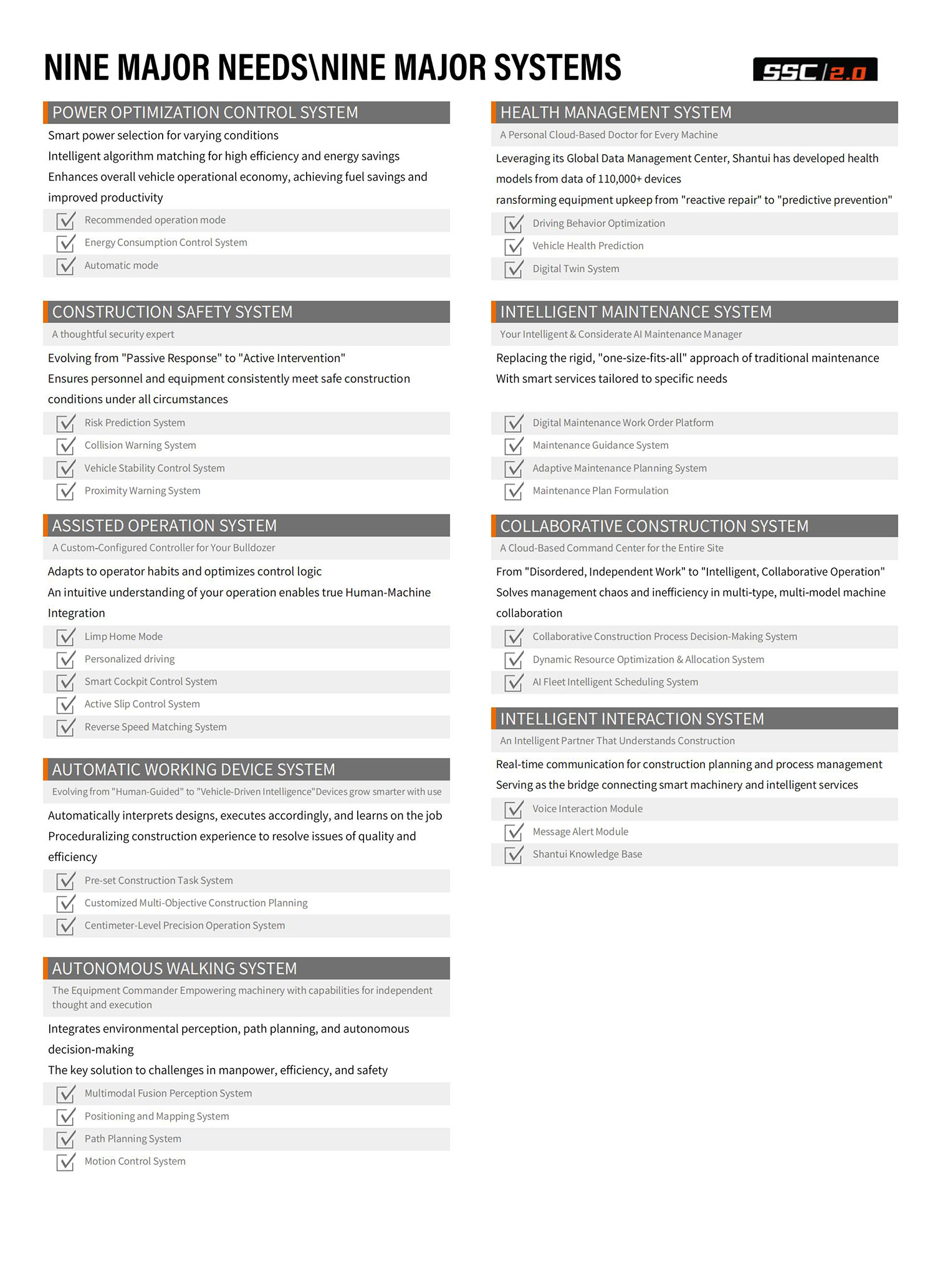

Optional AI Function Modules

SSC Function DetailsSub-functionReadyStdProMaxUltra
Intelligent Interaction System (IIS)Knowledge Base Q&A
Voice Control
Equipment Health Management (EHM)Vehicle Status Monitoring
Fault Alarms
Intelligent Equipment Maintenance (IEM)Maintenance Reminder

Operation & Maintenance Manual/Spare Parts Catalog Query

Power Management System(PMS)Operation Mode Switching
Assisted Operation System (AOS)Gear Presetting
Automatic Blade Lifting When Reversing
5G Long-Range Remote Control


Construction Safety System (CSS)Collision Warning


Edge Warning



Anti-Rollover Warning


360° Intelligent Perception
Automated Construction System (ACS)Implement Guidance
Automatic Implement Control
Automated Utility Construction System (AUCS)Path Planning



Motion Control



Longitudinal Operation Active Judgment



Coordinated Construction System (CCS)Single Machine Construction Data Upload
