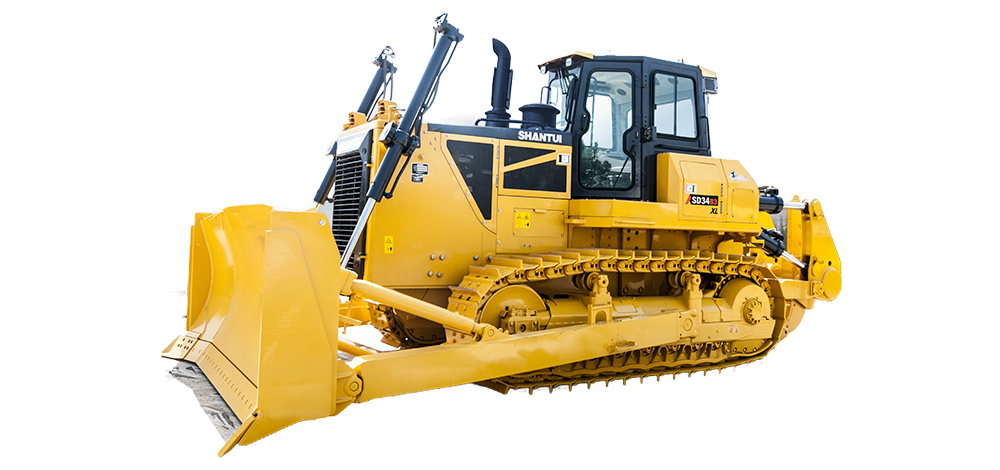

SD34-B3 XL
Medium Bulldozer
SD34-B3 XL
  • Overall weight(kg)
    39600
  • Engine brand
    WEICHAI WP13 / Cummins NTA855-C360
  • Rated power/rated speed(kW/rpm)
    269/2000(WP13) ; 257/2000(NTA855-C360)
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Power and Reliability

It is equipped with a Weichai WP13/Chongfa NTA855 - C360 engine, combined with a self - developed transmission system and an enhanced chassis. It also features an intelligent electronic control system and a centralized lubrication function.

Maintenance Features

The large - opening hood, externally mounted working valve, centralized filter arrangement, and well - designed lubrication chart significantly enhance maintenance convenience.

Safe and Comfortable Ride

It comes with an integrated modular air - conditioning system, incorporating FOPS/ROPS (Falling Object Protection Structure/Rollover Protection Structure) functions. New top air ducts and vents have been added. With micro - pressurization technology, a brand - new semi - wraparound three - dimensional interior design, and a beveled tolerance seal, the noise level around the driver's ears is effectively reduced.

Parameter
Parameter SD34-B3 XL
Overall weight(kg) 39600
Engine brand WEICHAI WP13 / Cummins NTA855-C360
Rated power/rated speed(kW/rpm) 269/2000(WP13) ; 257/2000(NTA855-C360)
Machine external dimensions(mm) 9185×4130×3650
Track center distance(mm) 2140
Track shoe width(mm) 560/610/660/710
Ground contact length(mm) 3150
Fuel tank capacity(L) 620
Blade type Semi-U
Blade capacity(m³) 10
Emissions (Indicated as per international standards) China Ⅱ
