  Products  Bulldozer

Medium Bulldozer

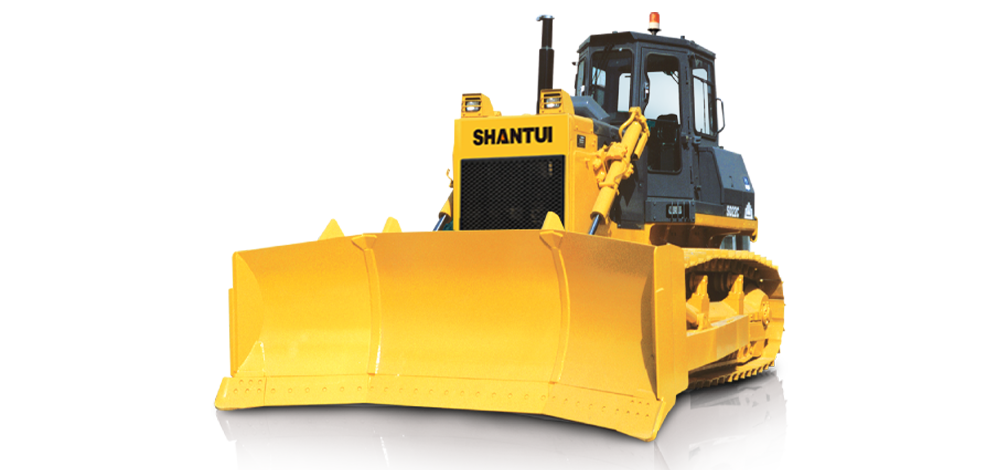

SD32C

Overall weight(kg)

34500
Engine brand

Cummins
Rated power/rated speed(kW/rpm)

257/2000

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

Equipped with the dedicated engine and paired with Shantui’s self-developed transmission, along with the durable and reliable Shantui chassis system, the machine demonstrates greater traction and enhanced operational efficiency;

Ease of maintenance and operation comfort

The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab provides a more spacious interior and wider field of view.

Adaptability to diverse working conditions

With an increased capacity for coal scooping, the machine is well-suited for various coal briquette and coal powder working conditions. The large ground clearance and well-sealed cab contribute to its exceptional adaptability to coal mine working conditions.

Parameter

View online

Parameter	SD32C
Overall weight(kg)	34500
Engine brand	Cummins
Rated power/rated speed(kW/rpm)	257/2000
Machine external dimensions(mm)	865048063760
Track center distance(mm)	2140
Track shoe width(mm)	560/610/660/710
Ground contact length(mm)	3150
Fuel tank capacity(L)	640
Blade type	coal U-blade
Blade capacity(m³)	12.1
Emissions (Indicated as per international standards)	Eu stageⅡ
