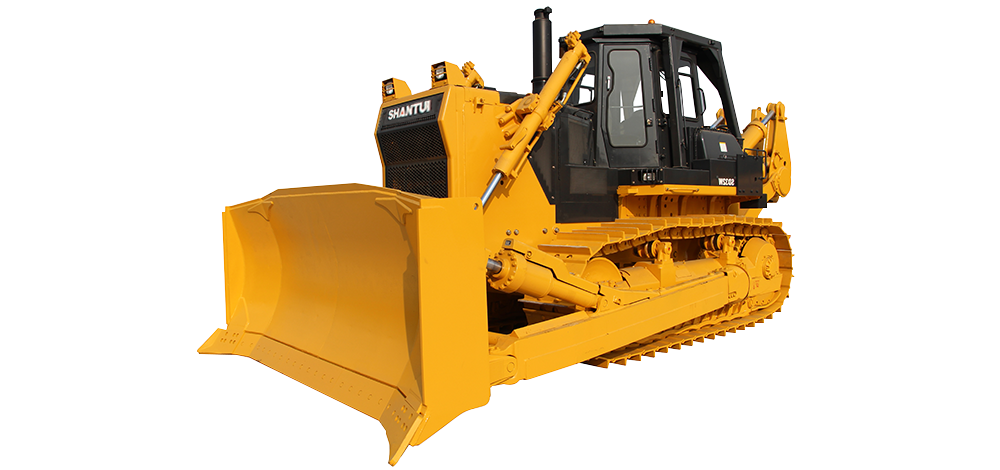

SD32W
Medium Bulldozer
SD32W
  • Overall weight(kg)
    40900
  • Engine brand
    Cummins
  • Rated power/rated speed(kW/rpm)
    257/2000
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
Equipped with the dedicated engine and paired with Shantui’s self-developed transmission, along with the durable and reliable Shantui chassis system, the machine demonstrates greater traction and enhanced operational efficiency;
Ease of maintenance and operation comfort
The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab provides a more spacious interior and wider field of view.
Adaptability to diverse working conditions
Designed with enhancements specifically for rock working conditions, the machine is equipped with a rock blade, heavy-duty tracks, and high-performance materials to ensure superior wear resistance, durability, and exceptional passability, making it well-suited for harsh operating environments.
Parameter
Parameter SD32W
Overall weight(kg) 40900
Engine brand Cummins
Rated power/rated speed(kW/rpm) 257/2000
Machine external dimensions(mm) 8650*4130*3760
Track center distance(mm) 2140
Track shoe width(mm) 560/610/660/710
Ground contact length(mm) 3150
Fuel tank capacity(L) 640
Blade type Straight tilting blade , Semi-U blade
Blade capacity(m³) 7.2/9
Emissions (Indicated as per international standards) Eu stageⅡ
