  Products  Bulldozer

Medium Bulldozer

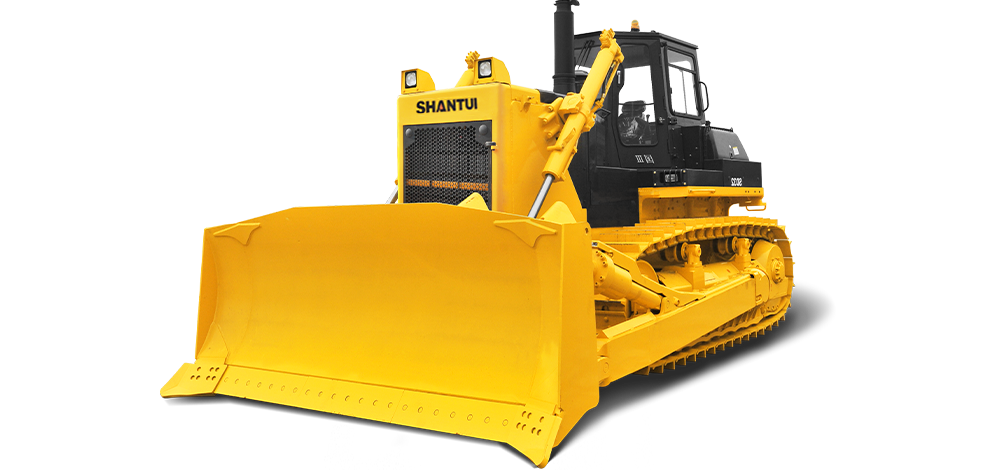

SD32

Overall weight(kg)

39700
Engine brand

Cummins
Rated power/rated speed(kW/rpm)

257/2000

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

Equipped with the dedicated engine, paired with Shantui’s self-developed transmission, and the incorporation of Shantui four wheels and one track, the machine demonstrates greater traction and enhanced operational efficiency;

Ease of maintenance and operation comfort

The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab provides a more spacious interior and wider field of view.

Adaptability to diverse working conditions

The machine is equipped with a straight tilt blade for enhanced cutting force, making it well-suited for diverse materials such as clay and frozen soil. With large ground clearance, the machine demonstrates excellent passability.

Parameter

View online

Parameter	SD32
Overall weight(kg)	39700
Engine brand	Cummins
Rated power/rated speed(kW/rpm)	257/2000
Machine external dimensions(mm)	865041303760
Track center distance(mm)	2140
Track shoe width(mm)	560/610/660/710
Ground contact length(mm)	3150
Fuel tank capacity(L)	640
Blade type	Straight tilting blade , Angle Blade and Semi-U blade
Blade capacity(m³)	7.2/4.8/9
Emissions (Indicated as per international standards)	Eu stageⅡ
