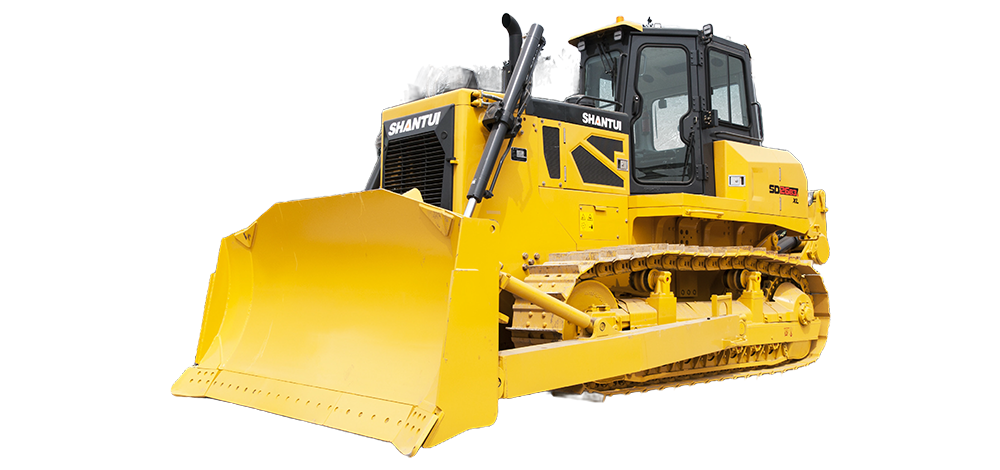

SD26-B3 XL
Medium Bulldozer
SD26-B3 XL
  • Overall weight(kg)
    24200
  • Engine brand
    Cummins
  • Rated power/rated speed(kW/rpm)
    206/1900
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
Equipped with the dedicated engine, featuring efficient turbocharging and scientific matching, the machine delivers more robust performance. Shantui’s self-developed chassis system offers a longer service life compared to its competitors;
Ease of maintenance and operation comfort
The working valve elements of the hydraulic system are externally placed to facilitate easy maintenance. The hexahedral cab that is designed with ergonomic considerations provides a spacious interior, excellent visibility, and more comfortable operation.
Adaptability to diverse working conditions
With its long ground contact length, large ground clearance, and stable travel, the machine delivers excellent passability. With a greater capacity brought by the semi-U blade, it delivers enhanced operational efficiency and demonstrates remarkable adaptability to diverse working conditions.
Parameter
Parameter SD26-B3 XL
Overall weight(kg) 24200
Engine brand Cummins
Rated power/rated speed(kW/rpm) 206/1900
Machine external dimensions(mm) 5980x3720x3460
Track center distance(mm) 2000
Track shoe width(mm) 610/660
Ground contact length(mm) 3050
Fuel tank capacity(L) 450
Blade type Straight/Angle/U-shape/Semi-U balde
Blade capacity(m³) 4.6/3.4/5.8/6.7
Emissions (Indicated as per international standards) Eu stageⅢA
