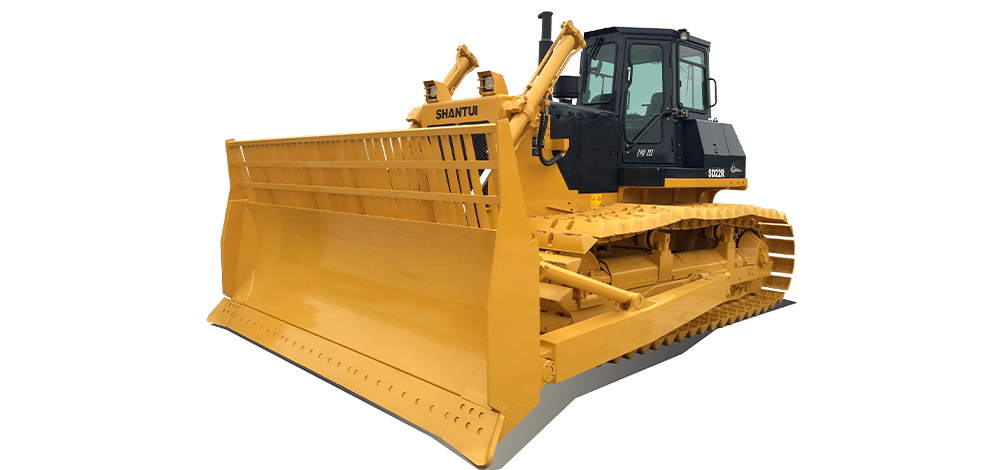

SD22R
Medium Bulldozer
SD22R
  • Overall weight(kg)
    26000
  • Engine brand
    Cummins NT855-C280S10/Weichai WP12G240E306
  • Rated power/rated speed(kW/rpm)
    175/1800
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
Shantui chassis system is built to be durable. Shantui’s self-developed drive system has been extensively proven in the market, exhibiting commendable durability. When combined with the dedicated engine, it delivers substantial traction;
Ease of maintenance and operation comfort
The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view;
Adaptability to diverse working conditions
Featuring a large chassis ground clearance and an anti-entanglement device, the machine delivers outstanding passability. It is equipped with a sanitation blade and provides the option for a ripper. The cab is well-sealed, ensuring its suitability for sanitation working conditions.
Parameter
Parameter SD22R
Overall weight(kg) 26000
Engine brand Cummins NT855-C280S10/Weichai WP12G240E306
Rated power/rated speed(kW/rpm) 175/1800
Machine external dimensions(mm) 6290*4365*3402
Track center distance(mm) 2250
Track shoe width(mm) 910
Ground contact length(mm) 3480
Fuel tank capacity(L) 450
Blade type Waste handing
Blade capacity(m³) 11.8
Emissions (Indicated as per international standards) Eu stageⅡ
