  Products  Bulldozer

Medium Bulldozer

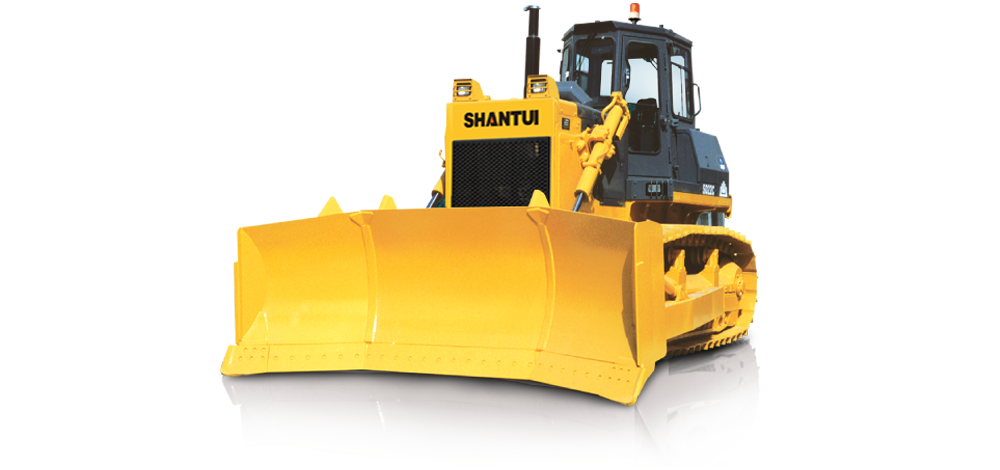

SD22C

Overall weight(kg)

24000
Engine brand

Cummins NT855-C280S10/Weichai WP12G240E306
Rated power/rated speed(kW/rpm)

175/1800

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

Shantui chassis system is built to be durable. Shantui’s self-developed drive system has been extensively proven in the market, exhibiting commendable durability. When combined with the dedicated engine, it delivers substantial traction;

Ease of maintenance and operation comfort

The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view;

Adaptability to diverse working conditions

With an increased capacity for coal scooping, the machine is well-suited for various coal briquette and coal powder working conditions. The large ground clearance and well-sealed cab contribute to its exceptional adaptability to coal mine working conditions.

Parameter

View online

Parameter	SD22C
Overall weight(kg)	24000
Engine brand	Cummins NT855-C280S10/Weichai WP12G240E306
Rated power/rated speed(kW/rpm)	175/1800
Machine external dimensions(mm)	549537253402
Track center distance(mm)	2000
Track shoe width(mm)	660
Ground contact length(mm)	2430
Fuel tank capacity(L)	450
Blade type	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade
Blade capacity(m³)	4.6/3.4/5.8/6.7
Emissions (Indicated as per international standards)	Eu stageⅡ
