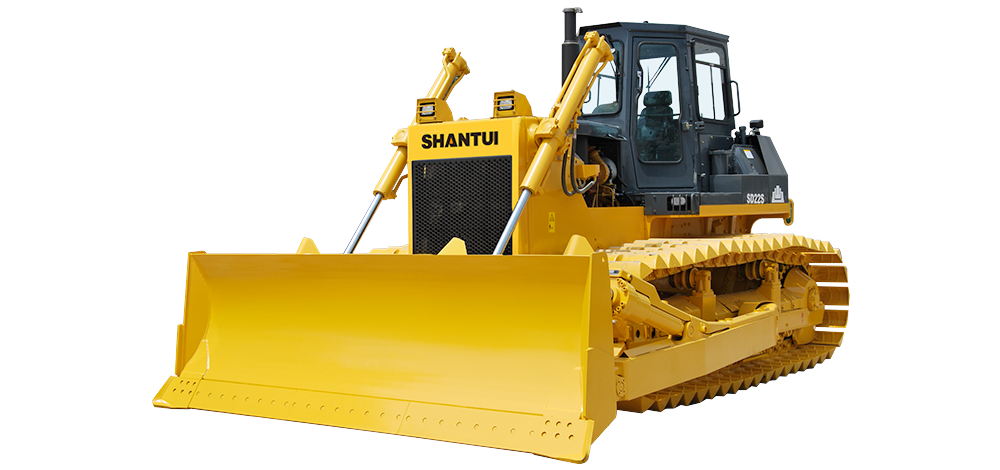

SD22S
Medium Bulldozer
SD22S
  • Overall weight(kg)
    25700
  • Engine brand
    Cummins NT855-C280S10/Weichai WP12G240E306
  • Rated power/rated speed(kW/rpm)
    175/1800
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point
Shantui’s self-developed chassis system is built to be durable. Shantui’s self-developed drive system has been extensively proven in the market. Equipped with the dedicated engine, the machine delivers substantial traction and exceptional efficiency;
Ease of maintenance and operation comfort
The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view;
Adaptability to diverse working conditions
The machine is equipped with a straight tilt blade and offers the option of incorporating a three-tooth ripper to showcase its remarkable adaptability to diverse working conditions. With its large ground contact area and excellent passability, the machine can operate in marsh environments without getting stuck, perfectly suited for wetland environments.
Parameter
Parameter SD22S
Overall weight(kg) 25700
Engine brand Cummins NT855-C280S10/Weichai WP12G240E306
Rated power/rated speed(kW/rpm) 175/1800
Machine external dimensions(mm) 6290*4365*3402
Track center distance(mm) 2250
Track shoe width(mm) 910
Ground contact length(mm) 3480
Fuel tank capacity(L) 450
Blade type Straight tilting blade
Blade capacity(m³) 5.2
Emissions (Indicated as per international standards) Eu stageⅡ
