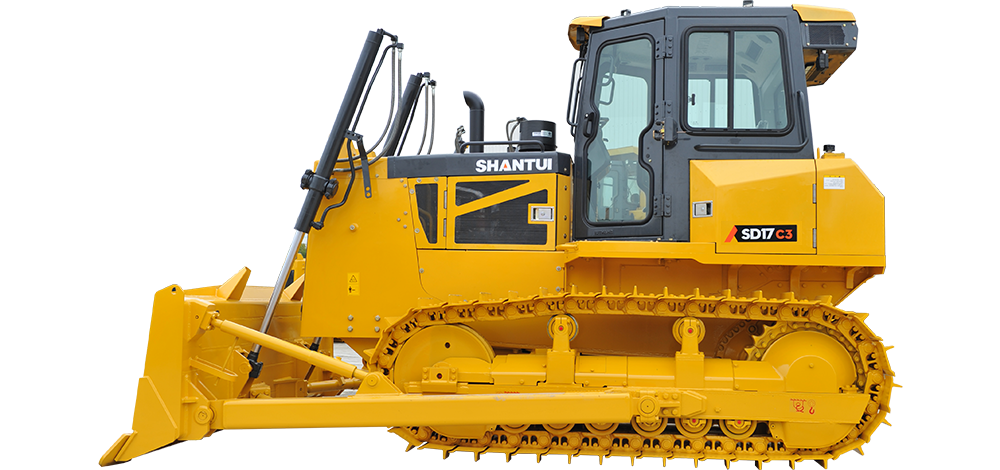

SD17-C3 XL
Medium Bulldozer
SD17-C3 XL
  • Overall weight(kg)
    16800
  • Engine brand
    WEICHAI WP10G190E354
  • Rated power/rated speed(kW/rpm)
    140/1900
  • Characteristic
  • Parameter
  • Case
  • Inquiry
Characteristic
Configuration selling point

Equipped with Weichai WP10 three power engine, with a maximum net power of 170 horsepower and a maximum driving speed of 13.1 km/h, the working efficiency is improved by 10%; According to actual load requirements, light load, medium load, and heavy load operation modes can be selected to achieve the optimal matching output of power, efficiency, and energy consumption; Fuel saving and power mode can be switched with just one click.


Ease of maintenance and operation comfort

The walking system adopts single handle electro-hydraulic control, integrating speed change, direction change, and steering, with simple operation and a 77% reduction in control force; Gear settings can be set according to the working conditions, making it more efficient and intelligent; The working device adopts pilot control, with precise control, good micro motion, and easy operation.


Adaptability to diverse working conditions

New enlarged positive pressure cab, high-end luxury interior, integrating anti roll and anti fall functions to ensure safety and comfort; Equipped with an industry-leading ultra wide angle view cab; Equipped with integrated rear air conditioning and a top mounted air duct design to meet the requirements for fresh air replacement; The seats are equipped with wide and thick armrests on both sides, which are independently supported and adjustable; The standard configuration includes a Bluetooth radio USB interface, storage box, tea cup holder, ashtray, sunshade.


Parameter
Parameter SD17-C3 XL
Overall weight(kg) 16800
Engine brand WEICHAI WP10G190E354
Rated power/rated speed(kW/rpm) 140/1900
Machine external dimensions(mm) 5450*3452*3200
Track center distance(mm) 1880
Track shoe width(mm) 510/560/610
Ground contact length(mm) 2635
Fuel tank capacity(L) 338
Blade type Direct Dumping Blade
Blade capacity(m³) 3.2
Emissions (Indicated as per international standards) Eu stageⅢA
