  Products  Bulldozer

Medium Bulldozer

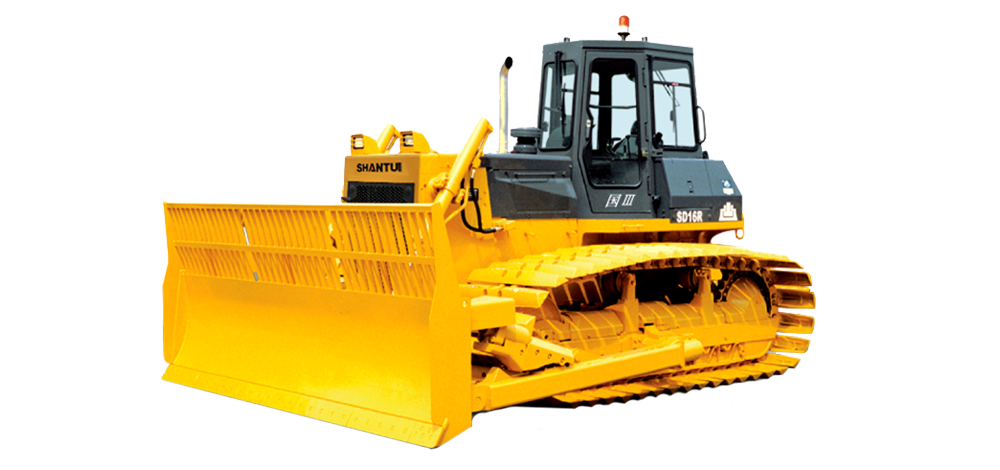

SD16R

Overall weight(kg)

18460
Engine brand

WEICHAI WD10G178E25
Rated power/rated speed(kW/rpm)

131/1850

inquiry

Data download

Find nearby distributor

Characteristic
Parameter
Case
Inquiry

inquiry

Data download

Find nearby distributor

Characteristic

Configuration selling point

Shantui’s self-manufactured drive system perfectly aligns with the engine curve, resulting in substantial traction and enhanced transmission efficiency. Shantui’s self-developed four wheels and one track are built to be durable;

Ease of maintenance and operation comfort

The openable side guard offers a spacious area and the reasonable layout of filter elements facilitates convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view.

Adaptability to diverse working conditions

Featuring a sanitation blade, large ground clearance, and an anti-entanglement device, the machine demonstrates excellent passability. The well-sealed cab makes it well-suited for sanitation operations;

Parameter

View online

Parameter	SD16R
Overall weight(kg)	18460
Engine brand	WEICHAI WD10G178E25
Rated power/rated speed(kW/rpm)	131/1850
Machine external dimensions(mm)	526241503074
Track center distance(mm)	2300
Track shoe width(mm)	1100/660
Ground contact length(mm)	2935
Fuel tank capacity(L)	315
Blade type	Waste handling blade
Blade capacity(m³)	8.3
Emissions (Indicated as per international standards)	Eu stageⅡ
